Acu‑Rite DRO300 Now Enables Control of Sinker EDMs, Expanding Its Versatility

Heidenhain’s Acu-Rite brand has introduced software for its 300-series digital readout (DRO) that now allows users to control a sinker EDM machine. This development broadens the DRO’s use to include most common manual shop machines including mills, lathes, grinders and EDMs.

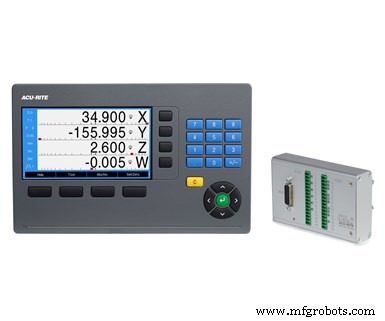

When the EDM software is loaded into a DRO300 and coupled with an IOB 610 interface box, it enables control through the use of three relay signals. This software is now included on all new multi-purpose DRO300s. For those who already own an Acu-Rite DRO300, v1.3.1 can be downloaded for free on acu-rite.com.

Some key features of the EDM control software include:

• Automatic depth programming, which enables the EDM’s ram to be configured to automatically retract or dwell at the target depth;
• Dwell cycle, wherein the relay holds the Z-axis depth until spark-out occurs;
• Reverse fault detection, which prevents creep out of the bath during a burn cycle; and
• EDM display mode, showing the current ram depth, the maximum depth reached and the target depth simultaneously on the three-axis displays.
