Every month, we’re putting together a Technology Showcase, highlighting some of the print and digital-only product information that Production Machining received from supplier companies. For March, we’re focusing on turning machines, including a chucker-convertible Swiss-type lathe, an 8-axis Swiss-type turning center that features a subspindle, a 20-mm machine with a rotary synchronous guide bushing and more.

For the latest new products across the broad spectrum of precision machining, check out PM’s New Products online.

Read PM’s February Technology Review.

If you would like to learn more about the latest news, product technology and operational best practices in the precision machining industry, consider subscribing to our free monthly print magazine.

Click on each link below to read the full product post:

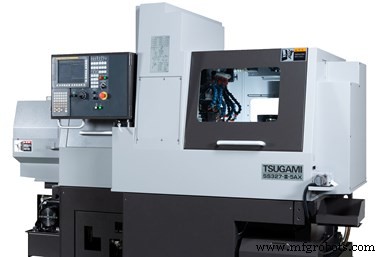

Tsugami B-Axis Swiss-Type Machines Complex Shapes

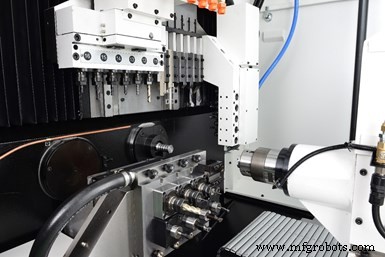

Tsugami/Rem Sales’ enhanced Tsugami SS327-III-5AX, 32mm, B-axis, chucker-convertible Swiss-type lathe has a servo-driven, modular B axis that allows for the cutting of complex parts, complete in a single setup, while applying the capability for through-hole thread whirling or high-speed spindles for small surfacing end mills. The B axis contains live tools (four front, two rear) which can machine in coordination with the C axis, delivering the ability to cut precise angles and sculpted contours. The B-axis functionality transforms this Swiss-type lathe into a multitasking turning center that can drill, tap and end mill at any angle.

Expand Machinery’s Genturn-52 CS Simplifies Setup, Reduces Costs

Expand Machinery’s Genturn-52CS Y2 is a 2" bar capacity, 8-axis Swiss-type turning center, featuring a subspindle and dual C and Y axes for producing complex work in just one handling. There is no guide bushing in this sliding headstock machine, thus simplifying setup while reducing job expenses and setup time.

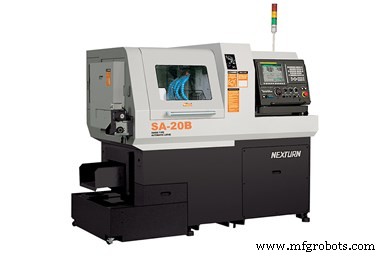

7-Axis Swiss Lathe Features Built-in Motor Spindle

The NexTurn SA-20B Swiss lathe is a 20-mm machine with a rotary synchronous guide bushing that features up to seven axes (Z1, X1, Y, Z2, X2, C1, C2) and can accommodate 22 total tools. Machining capacity is 20 mm on the main and subspindle, with a 210 mm (8") maximum turning length. The SA-20B is available packaged with a 12' magazine bar feeder, providing overall value in a 20-mm Swiss machine.

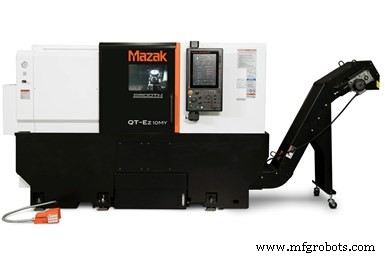

Mazak QT-Ez Turning Centers Offer Easy Automation Integration

Mazak Corp.’s QT-Ez Series CNC turning machines include a wide range of turning centers, including those with multitasking and done-in-one functionality. The series features Mazatrol SmoothEz control and automation systems such as Mazak’s Cobot Cell (CC) Series, which are high-value, versatile solutions ensuring ease of operation along with high productivity.

Romi C 420, C 510 CNC Lathes Well Suited for Gun Barrel Machining

Romi’s C 420 and C 510 CNC lathes offer users exceptional flexibility and can be used for numerous specialty applications, including machining gun barrels. The C 420 features a distance between centers of 39" (1 meter), while the C 510 has a generous 59" (1.5 meters) between centers. These ample sizes give manufacturers great flexibility in the length of the work they can machine, which is critical to gun barrel manufacturing.
