Top 3 CNC Vacuum Suction Cups for Precision Wood Machining

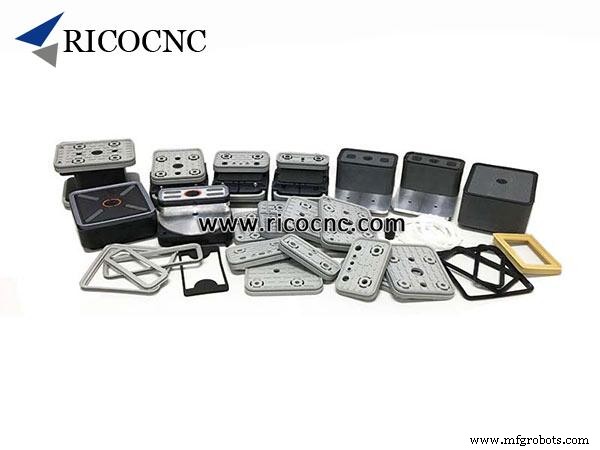

3 Kinds of Commonly Used CNC Vacuum Suction Cups
A CNC suction cup is a vital part of CNC pod and rail machining center and CNC router machine. It is mounted on the console to clamp the workpiece by vacuum and be moved to adjust their positions depending on the workpiece. The suction pods are suitable for processing small and high precision parts and can be machined on the side. They are widely used for solid wood processing.
There are three common CNC vacuum pods for CNC work center in the woodworking machinery market.1, Biesse ATS CNC vacuum pods

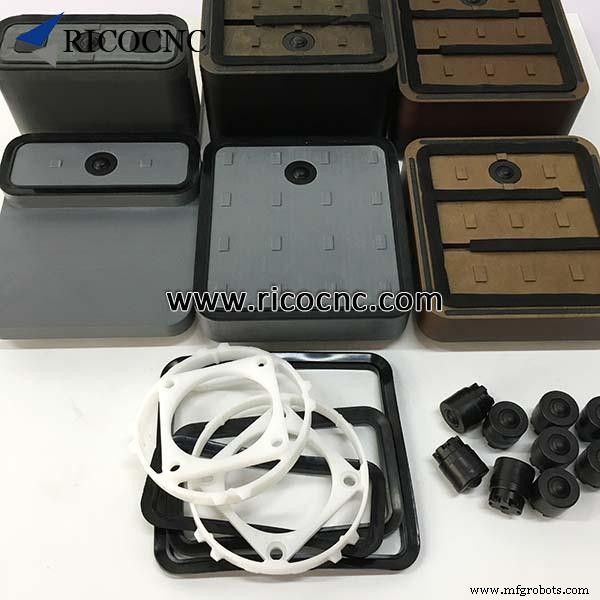

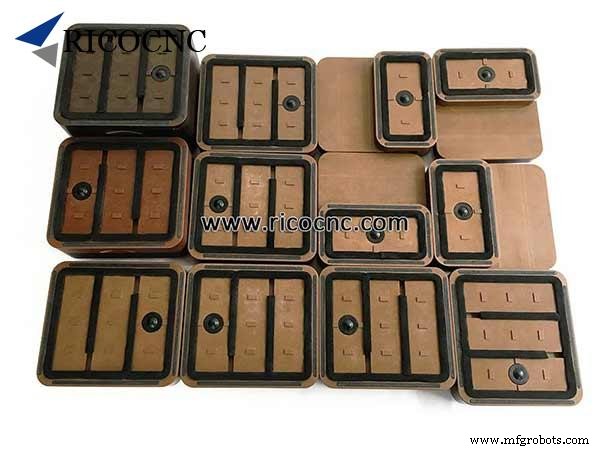

ATS is Abbreviation for 'Advanced Table Setting'. These CNC pods are manually positioned. There is a white nylon support locating ring on the bottom of this kind of pod. The base bodies of the vacuum cups are inserted into a holding fixture on a pod and rail table. The base body and holding fixture have a grating that is divided into 15° steps. Thus, it is possible to position the vacuum cup in different angles on the pod and rail table. These CNC vacuum pods are easy to find in Biesse rover series CNC machine. There are three different heights: 29mm, 48mm and 74mm vacuum pods for Biesse.
Here is the size for Biesse pods:
29mm height CNC vacuum pods:
Full-size pod: 132*146*29mm
Half-size pod (1/2 Size): 132*75*29mm
1/3 Size pod: 132*54*29mm
48mm height vacuum cups:
Full pod: 132*146*48mm
Half pod (1/2 Size): 132*75*48mm
1/3 Size pod: 132*54*48mm
74mm Biesse CNC vacuum pods:
Full pod: 132*146*74mm
Half pod (1/2 Size): 132*75*74mm
1/3 Size pod: 132*54*74mm
2, Homag and Weeke CNC suction pods

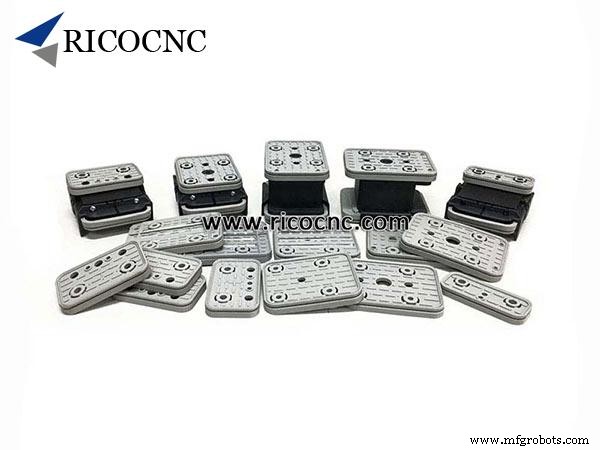

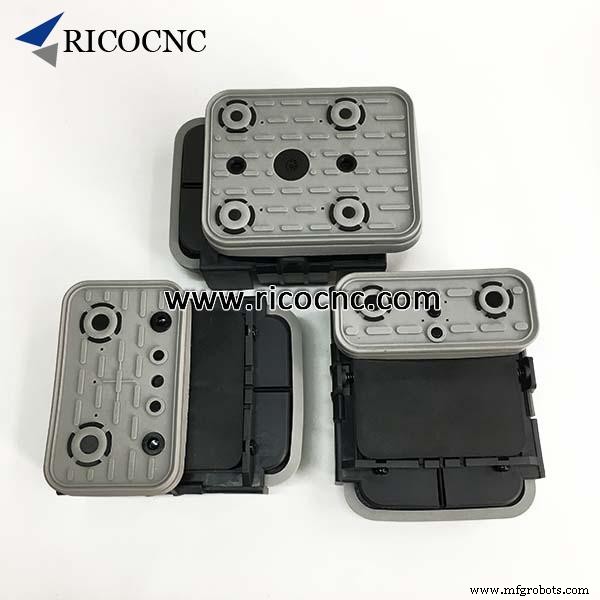

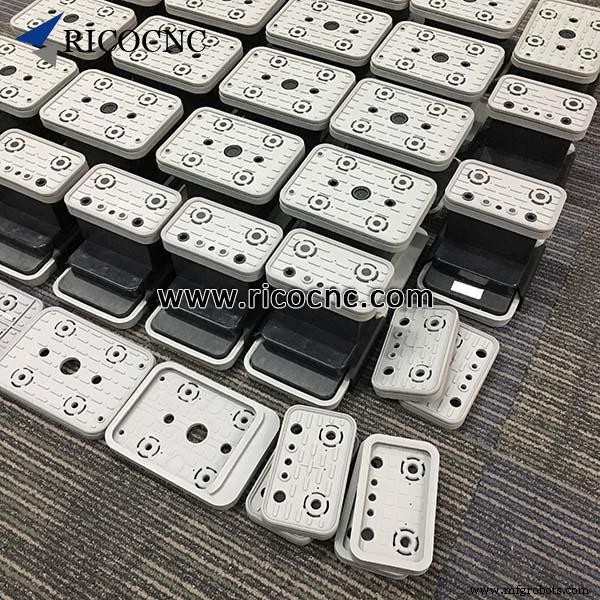

These suction blocks are manufactured by Schmalz. Schmalz is one of the world's leading suppliers in vacuum technology. It can provide a wide of product range includes a variety of suction cups with various shapes, sizes and materials. The suction cups for Homag and Weeke adopt a dual circuit system and the installation height is 100mm. They can be used on the normal K-table as well as on the AP-table (automatic positioning of the suction blocks).
|
Model |
Height(mm) |
Size |
Schmalz Part No. |
OEM P/N |
|
VCBL-K1 125x75x50 Q |
50 |
125x75x50mm |
10.01.12.00213 |
4-011-11-0368 |
|
VCBL-K1 140x115x50 |
50 |
140x115x50mm |
10.01.12.00210 |
4-011-11-0367 |
|
VCBL-K1 120x50x50 Q |
50 |
120x50x50mm |
10.01.12.00770 |
|
|
VCBL-K2 120x50x100 Q |
100 |
120x50x100mm |
10.01.12.00126 |
4-011-11-0117 |
|
VCBL-K2 125x75 x100 Q |
100 |
125x75 x100mm |
10.01.12.00951 |
|
|
VCBL-K2 160x115 x100 Q |
100 |
160x115 x100mm |
0.01.12.00949 |
|
|
VCBL-K2 140x115x100 |
100 |
140x115x100mm |
10.01.12.00445 |
4-011-11-0072 |
|
VCBL-K2 140x115x100 AS |
100 |
140x115x100mm |
10.01.12.00446 |
4-011-11-0071 |
|
VCBL-K2 125x75x100 Q |
100 |
125x75x100mm |
10.01.12.00447 |
4-011-11-0073 |
|
VCBL-K2 125x75x100 L |
100 |
125x75x100mm |
10.01.12.00506 |
|
|
VCBL-K2 120x50x100 L |
100 |
120x50x100mm |
10.01.12.00853 |
|
|
VCBL-K2 130x30x100 Q |
100 |
130x30x100mm |
10.01.12.00854 |
|
|
VCBL-K2 130x30x100 L |
100 |
130x30x100mm |
10.01.12.00855 |
|
|
VCBL-K2 120x50x100 D-360 with 360° rotatable top |
100 |
120x50x100mm |
10.01.12.01020 |
|
|
VCBL-K2 125x75x100 D-360 with 360° rotatable top |
100 |
125x75x100mm |
10.01.12.01079 |
|

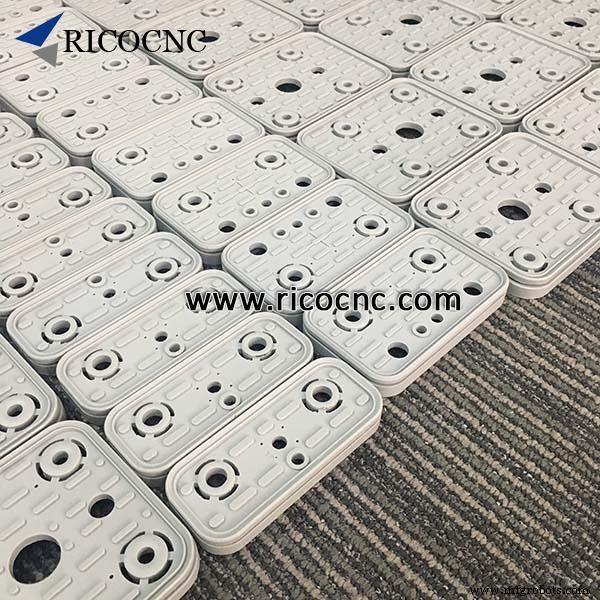

Top and bottom suction plates for this kind of vacuum pods can be removed and replaced.
Schmalz also can provide CNC machine pods for Anderson, Biesse, Busellato, Holzher, IMA, Masterwood and other woodworking machines brands.
3, SCM CNC pods

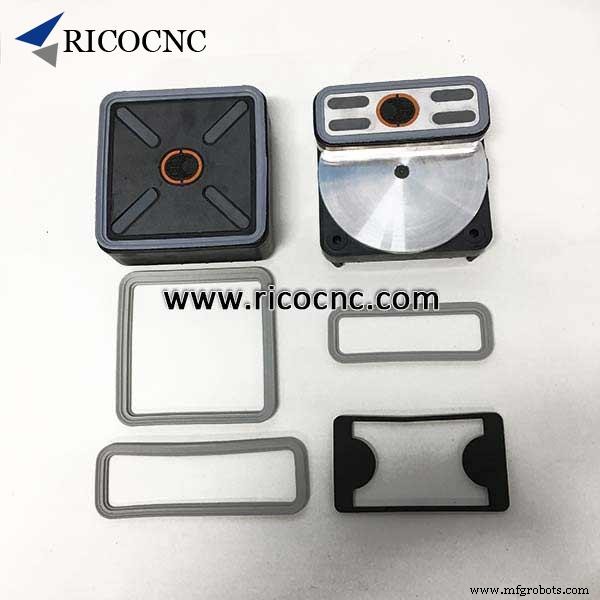

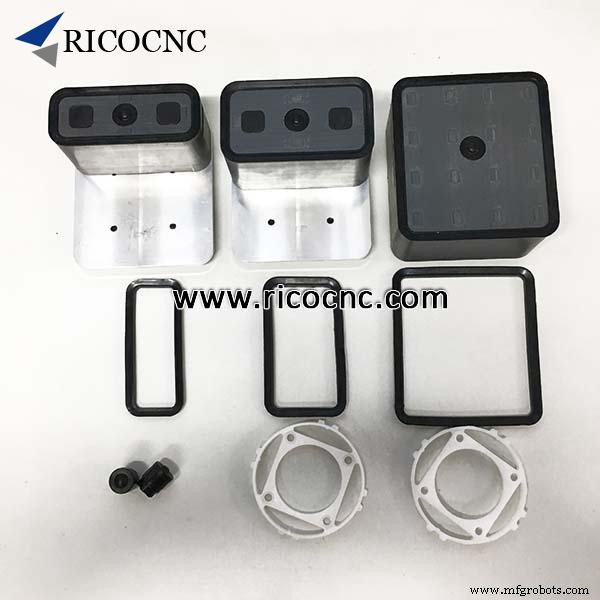

These vacuum pods are easily found in SCM/Morbidelli CNC woodworking centers.
SCM vacuum pods are available in two different sizes:SCM Morbidelli CNC suction pods: 50mm height 145 x 145mm
SCM Morbidelli CNC suction cups (rotatable): 50mm height 145 x 55mm
The rubber seal gaskets and bottom base gasket of these suction blocks are replacement parts.
RicoCNC is dedicated to providing high quality and factory direct CNC vacuum pods and also can supply a comprehensive range of woodworking machine parts, such as CNC tool holders and tool changer forks, router bits, etc. If you want to know more information, welcome to contact us.
