Control a Single Lamp from Three Locations: A Step‑by‑Step Guide

3-Way & 4-Way Switching Connections – Electrical Wiring Diagrams

What is 2-Way & 3-Way Switching Circuits?

Three-way switching or (Four-way circuits in the US) connection is used to control electrical appliances and equipment like fan, lighting points etc. from more than two places. The most common applications of this configuration is staircase wiring, hallway & corridor wiring, hostel wiring, hospital wiring, tunnel wiring, godown wiring etc. where a light bulb is controlled from two, three or even more places for ON and OFF operations.

Two Way or Three Way Switch?

Three Way Switch or Four Way Switch: “4-way” is the North American (USA) term used for crossover switch. While mentioning the same thing, most English-speaking countries (UK/EU) call them “3-way” or intermediate switch. The term for the pair of wires connecting the two switches also varies: “strappers” to the British and “travelers” to the US.

Please ignore if we mention it 3-Way or 4-Way switch as they are interchange words representing the same thing.

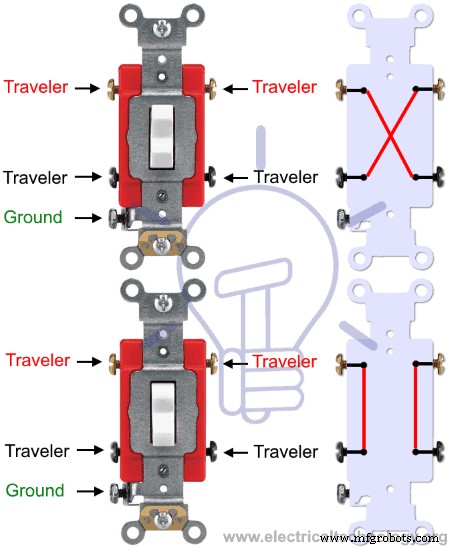

Construction & Working of a 3-Way & 4-Way Switch

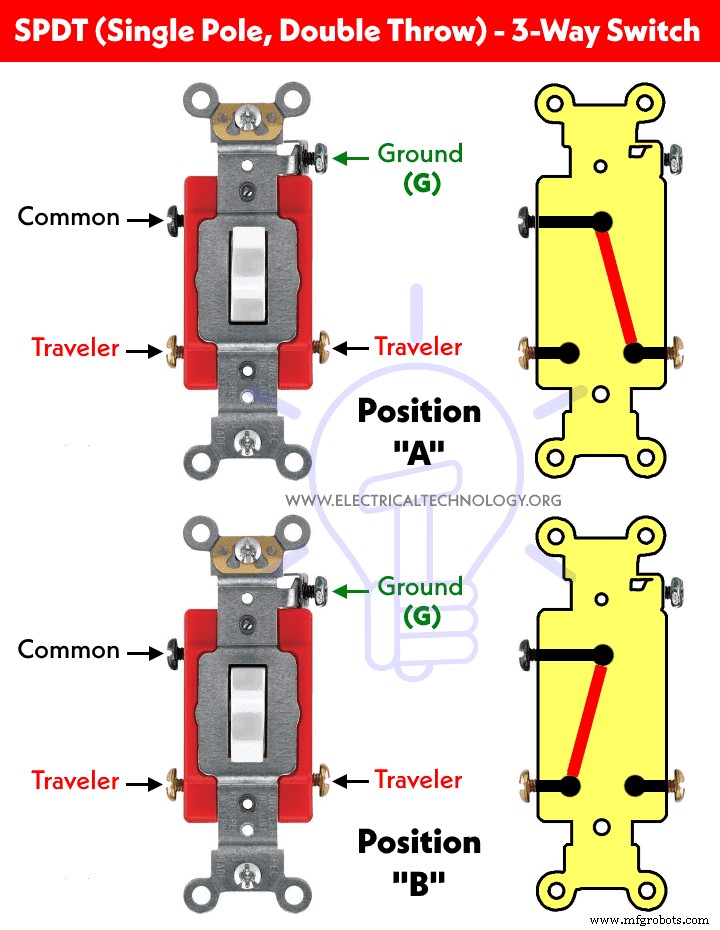

The 3-Way switch is also known as Single Pole Double Through (SPDT). The basic construction and working principle of 3-way switch is illustrated in (fig 1) below.

For this kind of wiring installation, you will have the following requirements.

• 1 No of 4-Way Switch (Intermediate as 3-Way in IEC)
• 2 Nos of 3-Way Switches (Two-Way Switches in the NEC)
• 1 No of Light Bulb
• Wires and cables as needed.

How to Control One Lamp From Three Places?

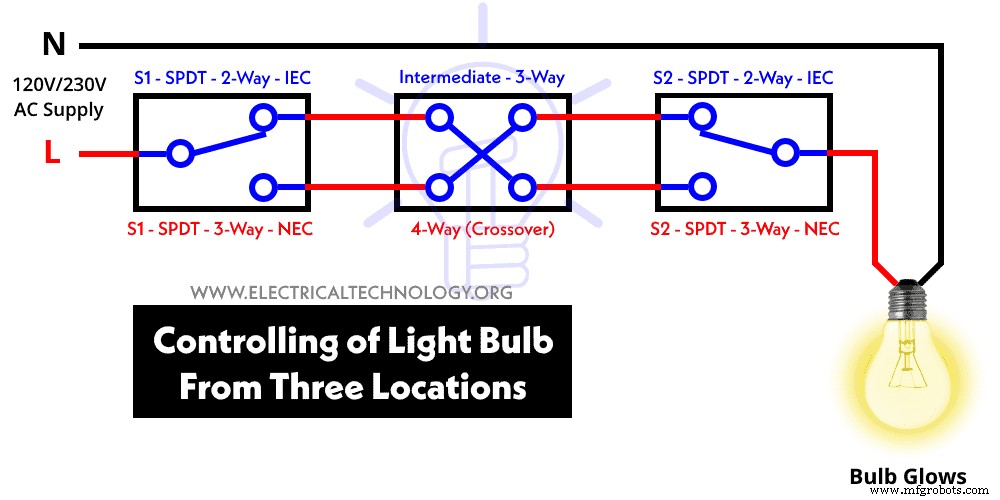

In fig 4, the wiring diagram shows how to control a light point from three different places by using two 2-way switches and an intermediate switch.

Fig 5 shows the same connection to control a light point from three places by using different symbols.

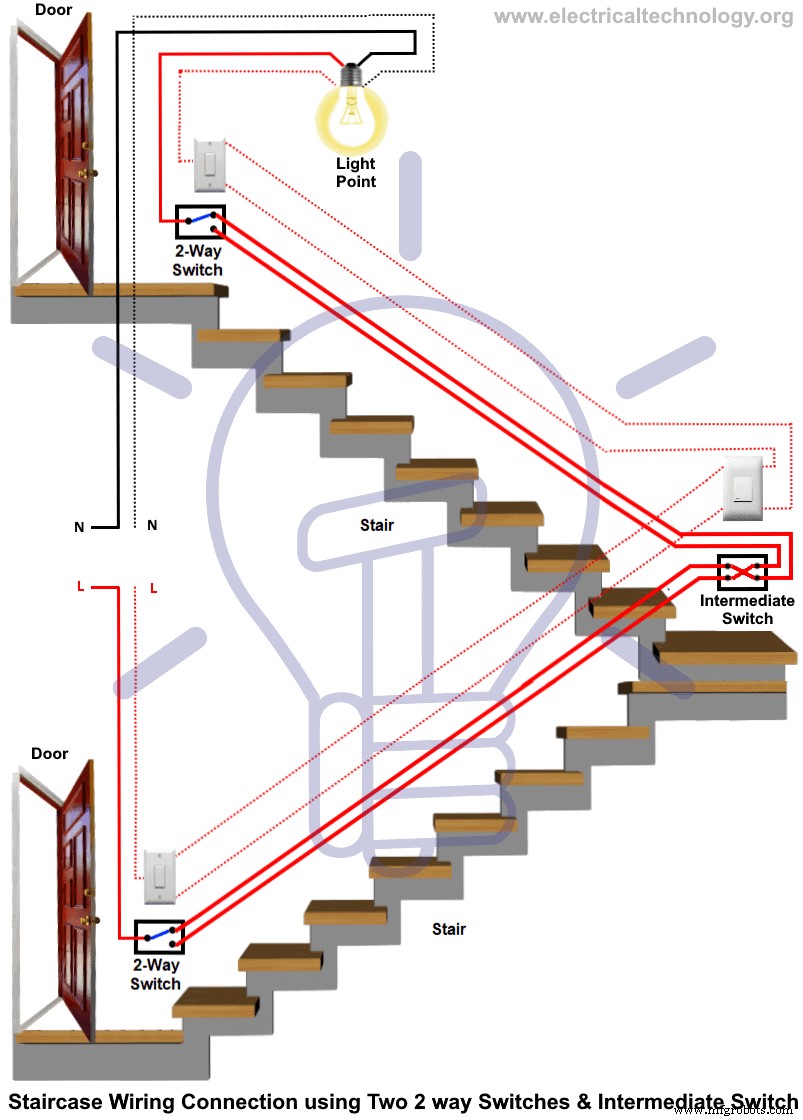

Three Way Switching to Control Light from Three Places in Staircase

The following wiring diagram shows how to control a light bulb from three different places using two 2-way (or 3-way) switches and an intermediate switch or 4-way switch.

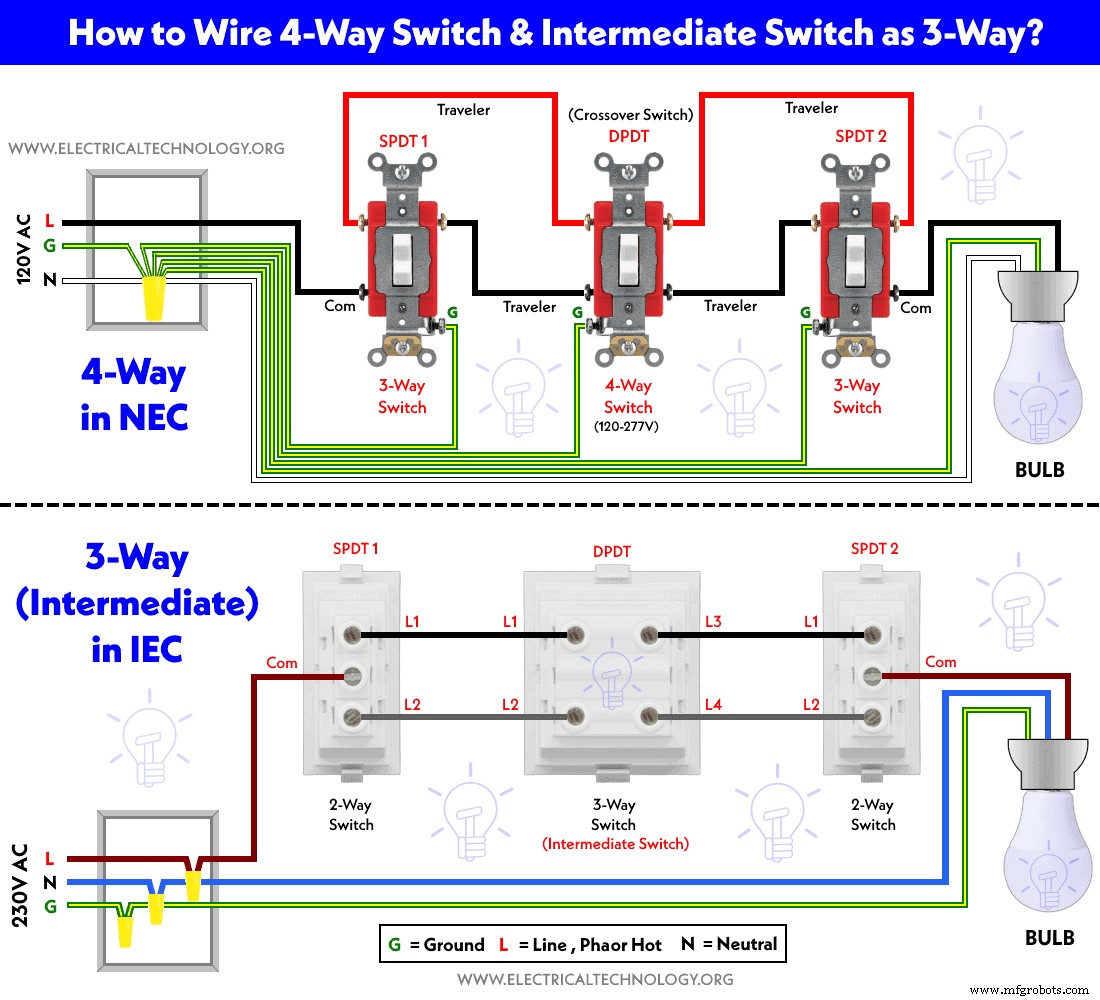

The following wiring diagram shows how to control a light bulb from three locations according to NEC and IEC.

Applications of 2-Way & Three Way Switching

• It is used to control electrical equipment and appliances from two different locations
• It is also used in staircase wiring connections where a light point can be controlled from two or more different places.
• It is used in large area premises, rooms, halls having two or more entry and exit points.
• The main purpose of 2-way & 3-way switching is to control an electrical appliance, device or equipment, especially light points from two places.
