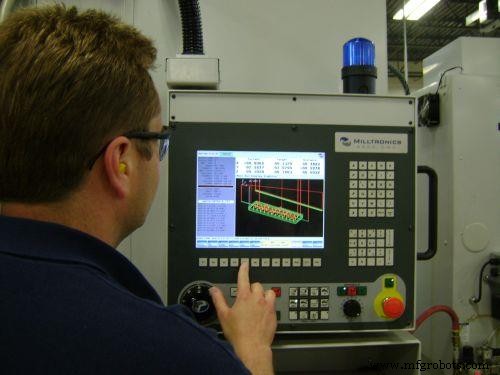

Complete Milltronics G‑Code Reference for CNC Machining Centers
Complete Milltronics G Code List for CNC machinists who work on CNC Mill with Milltronics CNC control.
You might like
- Milltronics G Code for Lathes
- Milltronics M Codes for Lathes
- Milltronics Centurion 7 G Code List
Milltronics G Codes for Machining Centers
Milltronics G Code List for Machining Centers
| G Code | Function |
|---|---|
| G00 | Rapid Positioning |
| G01 | Linear Feed |
| G02 | Circular / Helical Interpolation CW |
| G03 | Circular / Helical Interpolation CCW |
| G04 | Dwell |
| G09 | Exact Stop |
| G10 | Set Data On |
| G11 | Set Data Off |
| G12 | Clear Floating Zero |
| G17 | XY Plane |
| G18 | XZ or ZX Plane |
| G19 | YZ Plane |
| G20 | Inch Input |
| G21 | Metric Input |
| G22 | Safe Zone Check Off |
| G23 | Safe Zone Check On |
| G24 | Circular Pocket Clear |
| G25 | Circular Finish Inside |
| G26 | Circular Finish Outside |
| G28-G30 | Reference Point Return |
| G31 | Z to Clearance |
| G32 | Z to Tool Change |
| G33 | Facing Cycle |
| G34 | Rectangular Pocket Clear |
| G35 | Rectangular Finish Inside |
| G36 | Rectangular Finish Outside |
| G39 | Threading Mill Cycle |
| G40 | Cutter Compensation Cancel |
| G41 | Cutter Compensation Left |
| G42 | Cutter Compensation Right |
| G43 | H Offset Added |
| G44 | H Offset Subtracted |
| G45 | Auto Cutter Compensation Left |
| G46 | Auto Cutter Compensation Right |
| G47 | Auto Cutter Compensation Off |
| G49 | H Offset Cancel |
| G50 | Scaling Cancel |
| G51 | Scaling Set |
| G52 | Local Coordinate System Set |
| G53 | Machine Coordinate System |
| G54 | Work Coordinate 1 System (G540-G549) |
| G55-G59 | Work Coordinate 2-6 System (G5#0-G5#9) |
| G60 | Single Direction Rapid Positioning |
| G61 | Exact Stop Mode |
| G63 | Tapping Mode |
| G64 | Tapping Mode Off |
| G65 | Non-movement / Program Call |
| G68 | Set Rotation |
| G69 | Rotation Cancel |
| G70 | Mirror Cancel |
| G71 | Mirror Set |
| G72 | Bolt Hole Routine |
| G73 | Woodpecker |
| G74 | Left-hand Tapping |
| G75 | Counter Bore |
| G76 | Fine Bore |
| G77 | Custom Drill Cycle |
| G78 | Manual Bore |
| G79 | Custom Drill Cycle |
| G80 | Cancel Canned Cycle |
| G81 | Drill |
| G82 | Drill / Dwell |
| G83 | Peck / Drill |
| G84 | Right-hand Tapping |
| G85 | Bore |
| G86 | Fast Bore |
| G87 | Back Bore |
| G88 | Hard Tap |
| G89 | Bore / Dwell |
| G90 | Absolute Dimension |
| G91 | Incremental Dimension |
| G92 | Work Coordinate Chg. (Set Fl. Zero) |
| G93 | Inverse Time Feed Mode |
| G94 | Feed Per Minute |
| G95 | Feed Per Revolution |
| G98 | Canned Cycle Initial Level Return |
| G99 | Canned Cycle R Point Level Return |
| G187 | Rough Cutting |
| G188 | Medium Cutting |
| G189 | Finish Cutting |
| G271 | Pocket Clear |
| G666 | Polygon Circle |
| G990 | Store Parameters |
| G991 | Read Parameters |
| G995 | Read Byte Parameters |
| G996 | Set Byte Parameters |
| G997 | Force Error |
| G998 | Beep |
