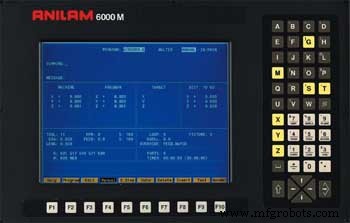

Anilam CNC Mill 6000M G‑Code Reference – Complete Guide

ANILAM G Code List for CNC Mill Controls like 6000M
G-codes initiate motion commands, canned cycles and various machine and CNC functions.
More than one G-code may be specified per block.
If a block contains conflicting G-codes, an Error message will appear.

Anilam G Code List – CNC Mill 6000M

Anilam G Code List – CNC Mill

G-Code   Function
G0           Positioning-Rapid Travers
G1           Linear Interpolation-Feed
G2           Circular Interpolation-CW
G3           Circular Interpolation-CCW
G4           Dwell
G5           Ellipse
G9           Exact Stop Check
G22         Stored Stroke Limit ON
G28         Return to Machine Home
G29         Return from Machine Home
G31         Probe Move
G40         Tool Radius Compensation, Cancel
G41          Tool Radius Compensation (Left)
G42          Tool Radius Compensation (Right)
G45          Mold Rotation
G49          Elbow Milling
G53          Work Coordinate System
G59          Modal Corner Rounding
G60          Modal Corner Rounding Off
G61          Exact Stop Check Mode
G62          Automatic Feed Override for Arcs
G63          Automatic Feed Override for Arcs Cancel
G64          Cutting Mode (Continuous Path ON)
G65          User Macro Single Call
G66          User Macro Modal Call
G67          User Macro Modal Call Cancel
G68          Coordinate System Rotation (Axis Rotation)
G70          Inch Programming
G71          MM Programming
G72          Axis Scaling
G73          Draft Pocket Milling Cycle
G75          Frame Milling
G76          Hole Milling Cycle
G77          Circular Pocket Cycle
G78          Rectangular Pocket Cycle
G79          Bolt Hole Circle Cycle
G80          Cancel Modal Drilling
G81          Basic Drilling Cycle
G82          Counterbore Drilling Cycle
G83          Basic Peck Cycle
G84          Tapping Cycle
G85          Basic Bore Cycle
G86          Uni-directional Boring Cycle
G87          Chip Break Drilling Cycle
G89          Flat Bottom Bore Cycle
G90          Absolute Programming
G91          Incremental Programming
G92          Absolute Zero Preset
G94          Per Minute Feed
G95          Per Revolution Feed
G169         Area Clearance
G170         Facing Cycle
G171         Circular Profile Cycle
G172         Rectangular Profile Cycle
G177         Plunge Circular Pocket
G178         Plunge Rectangular Pocket
G179         Hole Pattern Drilling
G181         Thread Mill Cycle
