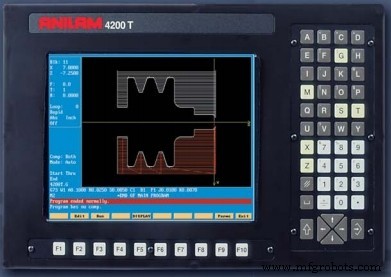

Anilam 4200T CNC Turning Controls: Master G Code Functions

Anilam G Code List for CNC machinists who work on CNC lathe machines with Anilam CNC controls like 4200T
More than one G-code may be specified per block.
If a block contains conflicting G-codes, an error message appears.

4200T CNC Controls for Turning

Anilam G Codes – Preparatory Functions

G-Code    Function
G0            Positioning – Rapid Traverse
G1            Linear Interpolation
G2            Circular Interpolation – CW
G3            Circular Interpolation – CCW
G4            Dwell
G5            Ellipse
G9            Exact Stop Check
G22          Stored Stroke Limit ON (Programmable Stroke Limit)
G24          Spindle Speed Clamp
G31          Probe Move
G33          Threading
G40          Tool Tip Radius Compensation, Cancel
G41          Tool Tip Radius Compensation, Left of Path
G42          Tool Tip Radius Compensation, Right of Path
G53          Work Coordinate System (1-99,select)
G59          Modal Corner Rounding
G60          Modal Corner Rounding Off
G61          Exact Stop Check Mode (Continuous Path OFF)
G64          Cutting Mode (Continuous Path ON)
G65          User Macro Single Call
G66          User Macro Modal Call
G67          User Macro Modal Call Cancel
G68          Coordinate System Rotation
G70          Inch Programming
G71          MM Programming
G72          Axis Scaling
G74          Area Clearance (Face) Cycle
G76          Rough Turning / Boring Cycle
G77          Rough Facing Cycle
G78          Peck Drill Cycle
G79          Chip Break Drill Cycle
G81          Longitudinal Grooving Cycle (Turn)
G82          Face Grooving Cycle
G83          Longitudinal Thread Cycle, Plunge
G84          Longitudinal Thread Cycle, Compound
G85          Face Thread Cycle, Plunge
G86          Face Thread Cycle, Compound
G87          Tapping Cycle
G88          Boring
G90          Absolute Programming
G91          Incremental Programming
G92          Absolute Zero Preset
G94          Per Minute Feed
G95          Per Revolution Feed
G96          Constant Surface Speed Function (CSS)
G97          Revolutions Per Minute (RPM)
