Complete GSK 980TDb G Codes Guide for Turning CNC Systems
Complete list of GSK 980TDb G Codes

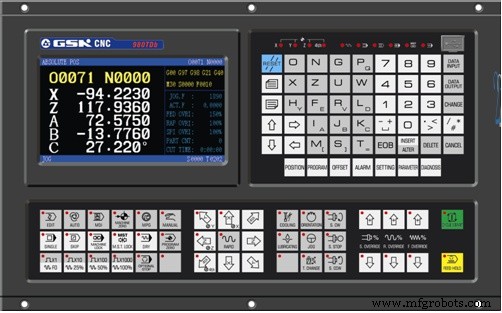

GSK 980TDb – Turning CNC System
GSK 980TDb G Codes
| G Code | Meaning |
| G01 | Linear interpolation |
| G00 | Rapid traverse movement |
| G01 | Linear interpolation |
| G02 | Circular interpolation(CW) |
| G03 | Circular interpolation(CCW) |
| G04 | Dwell time preset |
| G05 | Three-point circular interpolation |
| G6.2 | Ellipse interpolation (CW) |
| G6.3 | Ellipse interpolation (CCW) |
| G7.1 | Cylinder interpolation |
| G7.2 | Parabola interpolation (CW) |
| G7.3 | Parabola interpolation (CCW) |
| G10 | Data input |
| G11 | Data input cancel |
| G12.1 | Polar coordinate interpolation |
| G13.1 | Polar coordinate interpolation cancel |
| G17 | XY plane |
| G18 | ZX plane |
| G19 | YZ plane |
| G20 | Inch select |
| G21 | Metric select |
| G28 | Machine reference point automatic return |
| G30 | Machine 2nd, 3rd , 4th reference point |
| G31 | Skip interpolation |
| G32 | Thread cutting |
| G32.1 | Rigid thread cutting |
| G33 | Z tapping cycle |
| G34 | Variable pitch thread cutting |
| G36 | Automatic tool compensation X |
| G37 | Automatic tool compensation Z |
| G40 | Cancel cutter radius compensation |
| G41 | Tool nose radius compensation left contour |
| G42 | Tool nose radius compensation right contour |
| G50 | Setting workpiece coordinates system |
| G65 | Macro command |
| G70 | Finishing cycle |
| G71 | Axial roughing cycle |
| G72 | Radial roughing cycle |
| G73 | Closed cutting cycle |
| G74 | Axial grooving cycle |
| G75 | Radial grooving cycle |
| G76 | Multiple thread cutting cycle |
| G84 | End rigid tapping |
| G88 | Side rigid tapping |
| G90 | Axial cutting cycle |
| G92 | Thread cutting cycle |
| G94 | Radial cutting cycle |
| G96 | Constant surface speed ON |
| G97 | Constant surface speed OFF |
| G98 | Feed per minute |
| G99 | Feed per rev |
