Master CNC Turning with G71 Cycle: Step-by-Step ISO Program
Submit by: Vikram
Summary

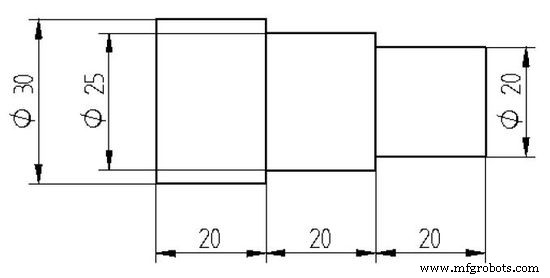

Write an ISO program for step turning operation of the component shown in figure using canned cycles. The diameter of the work piece = 30mm
Drawing/Image
CNC Program
N0 G90 F0.5 S1200 T0101 M03 N10 G00 X30 Z2 N11 G71 U0.5 R0.5 N12 G71 P30 Q80 U0.05 W0.05 N30 G01 X20 Z0 N40 G01 X20 Z-20 N50 G01 X25 Z-20 N60 G01 X25 Z-40 N70 G01 X30 Z-40 N80 G01 X30 Z-60 N100 G28 U0 W0 N110 M05 M30
