CNC Milling Programming Demo: Master G90 Absolute & G91 Incremental Techniques

A very basic cnc mill programming exercise for cnc machinists.

This cnc example code shows the use of

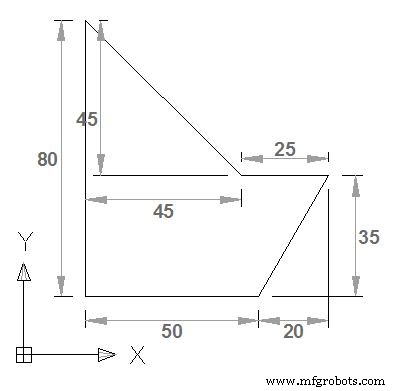

CNC Mill Programming Exercise

CNC Milling Programming Demo: Master G90 Absolute & G91 Incremental Techniques

Using G90 Absolute Programming G91 Incremental Programming

G90 Absolute Programming

G90 G01 X0 Y0
X50.0
X70.0 Y35.0
X45.0
X0 Y80.0
Y0
M30

G91 Incremental Programming

G91 G01 X0 Y0
X50.0
X20.0 Y35.0
X-25.0
X-45.0 Y45.0
Y-80.0
M30
