Fanuc G90 Turning Cycle: CNC Program Example for Efficient Turning Operations
G90 Turning Cycle is very briefly explained in this cnc tutorial G90 Turning Cycle.
G90 turning cycle is used for simple turning however multiple passes are possible by specifying the X-axis location of additional passes.
G90 turning cycle can be used for
- Straight turning.
- Boring operation.
- Taper cutting.
Below is the cnc program example code for the fanuc G90 turning cycle.
CNC Program Example Code for Fanuc G90 Turning Cycle

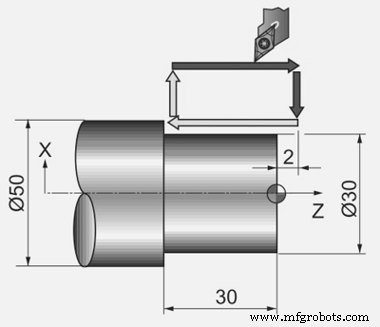

G90 Turning Cycle Fanuc – CNC Program Example
G30 U0 W0 G50 S2000 T0100 G96 S200 M03 G00 X56.0 Z2.0 T0101 M08 G90 X51.0 W-32.0 F0.25 X46.0 X41.0 X36.0 X31.0 X30.0 G30 U0 W0 M30
