G90 Turning Cycle Example on GSK 980 TDc CNC Lathe – Straight and Taper Turning

GSK 980 TDc CNC lathe program example illustrating how to use G90 Turning Cycle,
In this CNC program example G90 Turning Cycle is used twice,
first G90 cycle is used for straight tuning
then G90 cycle is used for taper turning.

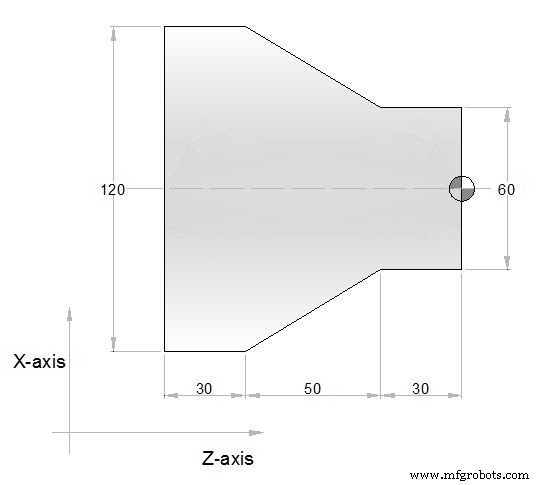

G90 Turning Cycle GSK 980 TDc CNC Example

G90 Turning Cycle Example on GSK 980 TDc CNC Lathe – Straight and Taper Turning

O0002;
M3 S300 G0 X130 Z3;
G90 X120 Z-110 F200;
X110 Z-30;
X100;
X90;
X80;
X70;
X60;
G0 X120 Z-30;
G90 X120 Z-44 R-7.5 F150;
Z-56 R-15;
Z-68 R-22.5;
Z-80 R-30;
M30;
