GSK 980 TDc CNC Programming Demo: Seamlessly Joining G02 & G03 Circular Arcs
GSK 980 TDc Program example, this cnc program example use G02 G03 Circular Interpolation G codes.

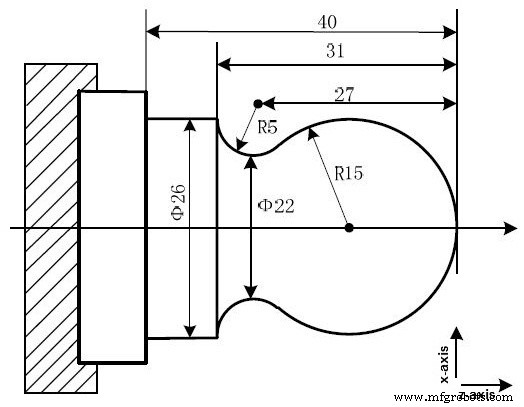

CNC program shows how two arcs can be joined together in a GSK 980 TDc cnc program.
GSK 980 TDc Programming Example
Program: O0001 N001 G0 X40 Z5; (Rapidly traverse) N002 M03 S200; (Start spindle) N003 G01 X0 Z0 F900; (Approach workpiece) N005 G03 U24 W-24 R15; (Cut R15 arc) N006 G02 X26 Z-31 R5; (Cut R5 arc) N007 G01 Z-40; (Cut φ26) N008 X40 Z5; (Return to starting point) N009 M30; (End of program)
