CNC milling circular interpolation program example to illustrate the use of G02 G03 Circular Interpolation G-Codes.
Easy to understand cnc mill coding tutorial from novice to mid-level cnc programmers and cnc machinists.

Related Circular Interpolation cnc programs

CNC Mill CNC G02 Circular Interpolation Clockwise CNC Milling Sample Program

CNC Lathe G02 G03 G Code Circular Interpolation Example Program and CNC Programming Example G Code G02 Circular Interpolation Clockwise

CNC Milling Circular Interpolation: Practical G02/G03 G‑Code Program Example

CNC Milling Circular Interpolation G02 G03 G-Code Program Example

G90

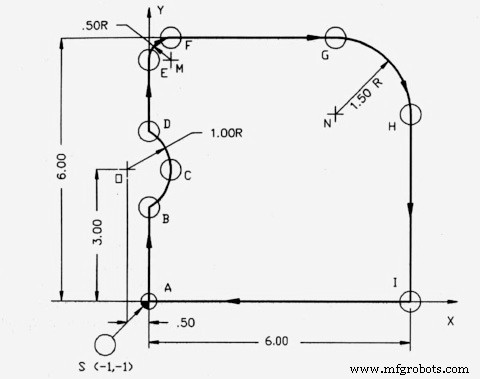

G00 X-1.0 Y-1.0                     ; point S
G01 X0 Y0 F7.5                      ; point A
Y2.134                              ; point B
G03 X0.5 Y3.0 I-0.5 J0.866          ; point C
X0. Y3.866 I-1. J0                  ; point D
G01 Y5.5                            ; point E
G02 X0.5 Y6.0 I0.5 J0               ; point F
G01 X4.5                            ; point G
G02 X6.0 Y4.5 I0 J-1.5              ; point H
G01 Y0                              ; point I
X0                                  ; point A
G00 X-1.0 Y-1.0                     ; point S
