CNC G02 Clockwise Circular Interpolation: Beginner‑Friendly Sample Program

CNC G02 Circular Interpolation Clockwise CNC Program Tutorial

CNC milling programming tutorial for cnc programmers/cnc machinists to understand the usage of G-code G02 circular interpolation milling programming.

CNC milling sample program is easy to understand for even beginner level cnc programmers and cnc machinists, no doubt this is a cnc milling programming for dummies tutorial.

Related cnc mill program examples

CNC Milling Circular Interpolation G02 G03 G-Code Program Example
CNC Milling Machine Programming Example for Beginners

CNC Milling Sample Program

CNC G02 Clockwise Circular Interpolation: Beginner‑Friendly Sample Program

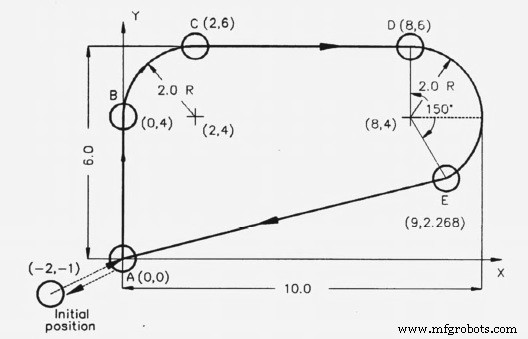

CNC G02 Circular Interpolation Clockwise CNC Milling Sample Program

G90 G00 X-2.0 Y-1.0
G01 X0 Y0 F8.0           ; point A
Y4.0                     ; point B
G02 X2.0 Y6.0 R2.0       ; point C
G01 X8.0                 ; point D
G02 X9.0 Y2.268 R2.0     ; point E
G01 X0 Y0                ; point A
G00 X-2.0 Y-1.0
