Heidenhain CNC Milling Program: Precision Toolpath for Efficient Manufacturing
Submit by: Brian

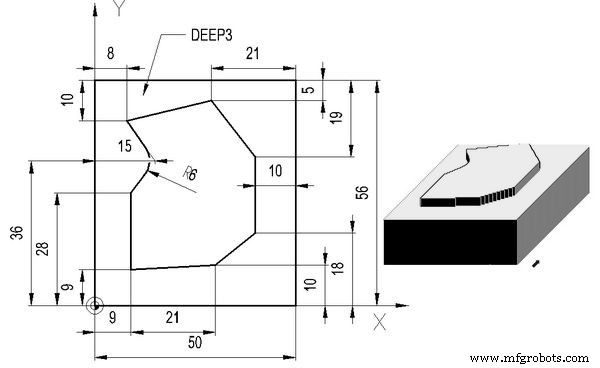

Drawing/Image
CNC Program
0 BEGIN PGM 1 MM 1 BLK FORM 0.1 Z X+0 Y+0 Z-20 2 BLK FORM 0.2 X+50 Y+56 Z+0 3 TOOL DEF 1 L+0 R+6 4 TOOL DEF 2 L+0 R+15 5 TOOL CALL 1 Z S 2400 6 L X-20 Y+9 Z+2 R0 FMAX M03 7 L Z-3 RR F40 M 8 L X+30 Y+10 R F80 M 9 L X+40 IY+8 R F M 10 L Y+37 R F M 11 L X+29 Y+51 R F M 12 L X+8 IY-5 R F M 13 L X+15 Y+36 R F M 14 L X+9 Y+28 R F M 15 L Y-15 R F M 16 L Z+2 R0 FMAX M 17 TOOL CALL 2 Z S 1800 18 L X-20 Y+5 Z+2 R0 FMAX M03 19 L Z-3 RR F40 M 20 L X+42 R F80 M 21 L Y+53 R F M 22 L X-20 R F M
