Heidenhain CNC: Simple Slot Milling Program Demo
Submit by: Brian

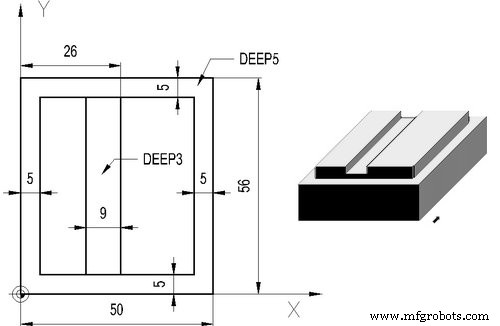

Drawing/Image
CNC Program
0 BEGIN PGM 1 MM 1 BLK FORM 0.1 Z X+0 Y+0 Z-20 2 BLK FORM 0.2 X+50 Y+56 Z+0 3 TOOL DEF 1 L+0 R+4,5 4 TOOL CALL 1 Z S 2200 5 L X+5 Y-7 Z+2 R0 FMAX M03 6 L Z-5 RL F40 M 7 L Y+51 R F80 M 8 L X+45 R F M 9 L Y+5 R F M 10 L X-10 R F M 11 L Z+2 R0 FMAX M 12 L X+26 Y-7 R0 FMAX M 13 L Z-3 RL F40 M 14 L Y+62 R F M 15 L Z+20 R0 FMAX M 16 STOP M02 17 END PGM 1
