Full Heidenhain Conversational CNC Program Example

Submit by: Machinist

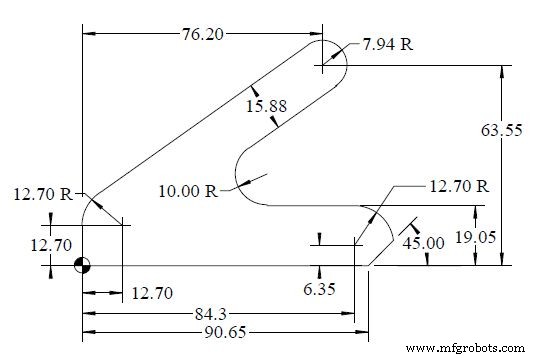

Drawing/Image

CNC Program

0 BEGIN PGM FK3 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-40
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL DEF 1 L+0 R+5
4 TOOL CALL 1 Z S500
5 L M6
6 L X-20 Y-20 R0 FMAX M3
7 L Z+2 FMAX
8 L Z-10 F500
9 L X+0 RL
10 L Y+12.7
11 CC X+12.7 Y+12.7
12 C X+5.361 Y+23.064 DR-
13 L X+71.611 Y+69.98
14 CC X+76.2 Y+63.5
15 C X+80.789 Y+57.02 DR-
16 L X+52.815 Y+37.211
17 CC X+58.595 Y+29.05
18 C X+58.595 Y+19.05 DR+
19 L X+84.3 Y+19.05
20 CC X+84.3 Y+6.35
21 C X+97 Y+6.35 DR-
22 L X+90.65 Y+0
23 L X-20
24 L Y-20 R0
25 L Z+50 R0 FMAX M5
26 TOOL CALL 0 Z S60
27 L M6
28 L M2
29 END PGM FK3 MM
