Heidenhain CNC Conversational Programming Sample – Step-by-Step Guide
Submit by: Machinist

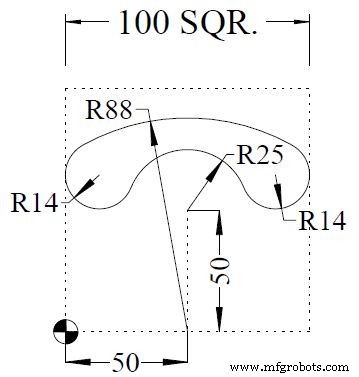

Drawing/Image
CNC Program
0 BEGIN PGM FK1 MM 1 BLK FORM 0.1 Z X-10 Y+0 Z-40 2 BLK FORM 0.2 X+110 Y+100 Z+0 3 TOOL DEF 1 L+0 R+5 4 TOOL CALL 1 Z S500 5 L M6 6 L X+50 Y+50 R0 FMAX M3 7 L Z+2 FMAX 8 L Z-10 F100 9 L Y+75 RL F500 10 CC X+50 Y+50 11 C X+26.805 Y+59.327 DR+ 12 CC X+13.816 Y+64.55 13 C X+6.97 Y+76.762 DR- 14 CC X+50 Y+50 15 C X+93.03 Y76.762 DR- 16 CC X+86.184 Y+64.55 17 C X+73.195 Y+59.327 DR- 18 CC X+50 Y+50 19 C X+50 Y+75 DR+ 20 L X+50 Y+50 R0 21 L Z+50 FMAX M5 22 TOOL CALL 0 Z S60 23 L M6 24 L M2 25 END PGM FK1 MM
