Heidenhain Slotting Cycle Example – Conversational CNC Programming

Submit by: Machinist

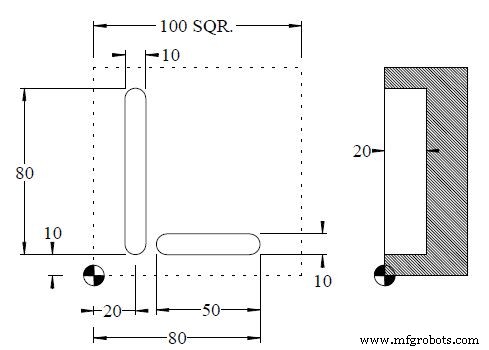

Drawing/Image

CNC Program

0 BEGIN PGM 10117 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-40
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL DEF 1
4 TOOL CALL 1 Z S1000
5 L M6
6 CYCL DEF 3.0 SLOT MILLING
7 CYCL DEF 3.1 SET UP 2
8 CYCLE DEF 3.2 DEPTH -20
9 CYCLE DEF 3.3 PECKG -10 F80
10 CYCLE DEF 3.4 Y+80
11 CYCLE DEF 3.5 X+10
12 CYCL DEF 3.6 F500
13 L X+20 Y+0 R0 FMAX M3
14 L Z+2 FMAX
15 L Y+10 R+ FMAX
16 CYCL CALL M8
17 CYCL DEF 3.0 SLOT MILLING
18 CYCL DEF 3.1 SET UP 2
19 CYCLE DEF 3.2 DEPTH -20
20 CYCLE DEF 3.3 PECKG -10 F80
21 CYCLE DEF 3.4 X+50
22 CYCLE DEF 3.5 Y+10
23 CYCL DEF 3.6 F500
24 L X+20 Y+15 FMAX
25 L X+30 R+ FMAX M99
26 TOOL CALL 0
27 L M6
28 L M30
29 END PGM 10117 MM
