Master Helical Milling with Heidenhain Conversational Programming: A Practical Exercise
Submit by: Machinist

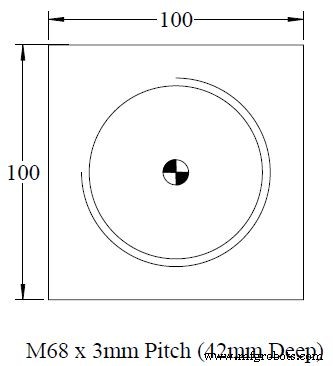

Drawing/Image
CNC Program
0 BEGIN PGM 10131 MM 1 BLK FORM 0.1 Z X+0 Y+0 Z-40 2 BLK FORM 0.2 X+100 Y+100 Z+0 3 TOOL DEF 1 4 TOOL DEF 2 5 TOOL CALL 1 Z S500 6 L M6 7 CYCL DEF 1.0 PECKING 8 CYCL DEF 1.1 SET UP 3 9 CYCL DEF 1.2 DEPTH -40 10 CYCL DEF 1.3 PECKG -40 11 CYCL DEF 1.4 DWELL 0 12 CYCL DEF 1.5 F100 13 L X+0 Y+0 R0 FMAX M3 14 L Z+3 FMAX M27 15 CYCL CALL 16 TOOL CALL 2 Z S1000 17 L M6 18 X+0 Y+6.8 R0 FMAX M3 19 L Z-41.5 FMAX 20 L IX+27.2 RL FMAX 21 CC X+0 Y+0 22 CP IPA+90 IZ+1.5 DR+ F100 M8 23 CP IPA+5040 IZ+42 DR+ 24 CP IPA+90 IZ+1.5 DR+ 25 L IX+27.2 R0 FMAX 26 L Z+100 FMAX M2 27 END PGM 10131 MM
