Heidenhain Pocket Milling Exercise: Step‑by‑Step Conversational Programming
Submit by: Machinist

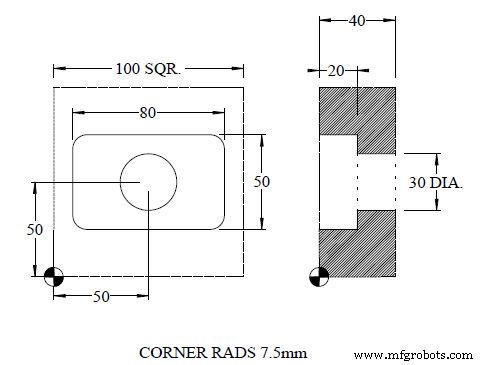

Drawing/Image
CNC Program
0 BEGIN PGM 10118 MM 1 BLK FORM 0.1 Z X+0 Y+0 Z-40 2 BLK FORM 0.2 X+100 Y+100 Z+0 3 TOOL DEF 1 4 TOOL CALL 1 Z S1000 5 L M6 6 CYCL DEF 4.0 POCKET MILLING 7 CYCL DEF 4.1 SET UP 5 8 CYCL DEF 4.2 DEPTH -20 9 CYCL DEF 4.3 PECKG -10 F80 10 CYCL DEF 4.4 X+80 11 CYCL DEF 4.5 Y+50 12 CYCL DEF 4.6 F500 DR+ 13 L X+50 Y+50 R0 FMAX M3 14 L Z+2 FMAX 15 CYCL CALL M8 16 CYCL DEF 5.0 CIRCULAR POCKET 17 CYCL DEF 5.1 SET UP -2 18 CYCLE DEF 5.2 DEPTH -20 19 CYCLE DEF 5.3 PECKG -10 F200 20 CYCLE DEF 5.4 RADIUS +15 21 CYCLE DEF 5.5 F500 DR+ 22 L Z-18 FMAX M99 23 CYCL CALL 24 TOOL CALL 0 25 L M6 26 L M30 27 END PGM 10118 MM
