Heidenhain TNC Programming Tutorial: Step-by-Step CNC Code Example
Submit by: Brian

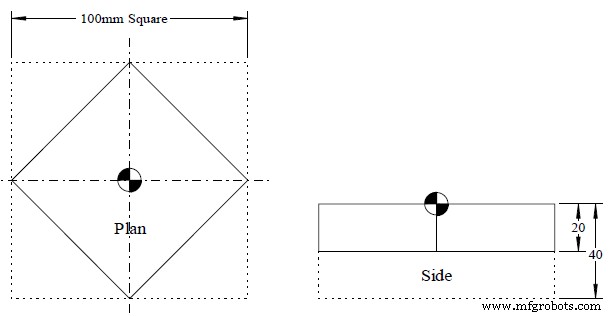

Drawing/Image
CNC Program
0 BEGIN PGM 10102 MM 1 BLK FORM 0.1 Z X-50 Y-50 Z-40 2 BLK FORM 0.2 X+50 Y+50 Z+0 3 TOOL DEF 1 4 TOOL CALL 1 Z S1000 5 L M6 6 L X-20 Y-20 R0 FMAX M13 7 L Z-20 FMAX 8 APPR ? 9 L X+0 Y+50 10 L X+50 Y+0 11 L X-50 Y+0 12 L X-50 Y+0 13 DEP ? 14 TOOL CALL 0 15 L M6 16 M30 17 END PGM 10102 MM
