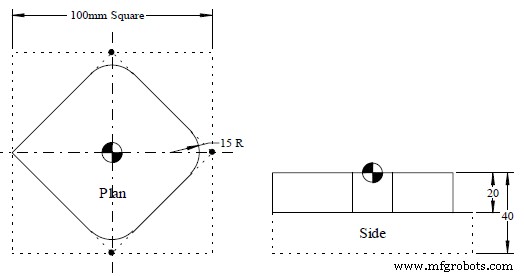

Heidenhain TNC Corner Rounding: Blend Radius Programming Exercise

For a brief description of how Chamfer and Corner Radius are programmed with G01 G code read following cnc programming articleChamfer and Radius Programming with G01 G code.You might read other cnc example program articles, these cnc programming articles are a good cnc programming reference for cnc

Submit by: Brian Drawing/Image CNC Program 0 BEGIN PGM 10124 MM1 BLK FORM 0.1 Z X+0 Y+0 Z-202 BLK FORM 0.2 X+120 Y+70 Z+03 TOOL DEF 14 TOOL DEF 25 TOOL DEF 36 TOOL CALL 1 Z S5007 L M68 L M139 CYCL DEF 1.0 PECKING10 CYCL DEF 1.1 SET UP 211 CYCL DEF 1.2 DEPTH -212 CYCL DEF 1.3 PECKG -213 CYCL DEF

Submit by: Machinist Drawing/Image CNC Program 0 BEGIN PGM 10118 MM1 BLK FORM 0.1 Z X+0 Y+0 Z-402 BLK FORM 0.2 X+100 Y+100 Z+03 TOOL DEF 14 TOOL CALL 1 Z S10005 L M66 CYCL DEF 4.0 POCKET MILLING7 CYCL DEF 4.1 SET UP 58 CYCL DEF 4.2 DEPTH -209 CYCL DEF 4.3 PECKG -10 F8010 CYCL DEF 4.4 X+8011 CYCL

Submit by: Vikram Drawing/Image CNC Program 0 BEGIN PGM 10114 MM1 BLK FORM 0.1 Z X-50 Y-50 Z-402 BLK FORM 0.2 X+50 Y+50 Z+03 TOOL DEF 14 TOOL CALL 1 Z S10005 L M66 L X+70 Y+0 R0 FMAX M37 L Z-20 FMAX8 APPR ?9 CC X+50 Y+5010 CP IPA+360 DR- (or CP PA+0 DR-)11 DEP ?12 TOOL CALL 013 L M614 L M3014 EN
