Mastering G01: Chamfer & Corner Rounding in CNC Programming

For a brief description of how Chamfer and Corner Radius are programmed with G01 G code read following cnc programming article
Chamfer and Radius Programming with G01 G code.

You might read other cnc example program articles, these cnc programming articles are a good cnc programming reference for cnc programmers/cnc machinists working on the shop floor.

CNC Programming for Beginners a Simple CNC Programming Example
CNC Programming Example in Inch Simple CNC Lathe Program
Lathe CNC Programming Example
CNC Milling Machine Programming Example for Beginners
CNC G02 Circular Interpolation Clockwise CNC Milling Sample Program

The following cnc program example shows how actually Chamfer and Radius are programmed with G01 in a cnc lathe program.

G01 Chamfer and Corner Rounding

Mastering G01: Chamfer & Corner Rounding in CNC Programming

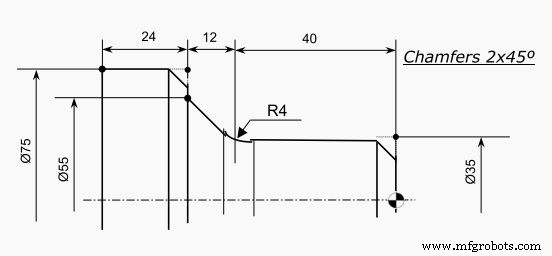

CNC Programming Example of Chamfer and Corner Rounding with G01 G Code

N5 ……
N6 G00 X0 Z3
N7 G01 Z0 F0.2
N8 X35 C2
N9 Z-40 R4
N10 X55 Z-52 F0.1
N11 X75 C2
N12 Z-76
N13 G00 X100 Z50
N14 ……
