Haas Corner Rounding & Chamfering Program Example – Step‑by‑Step CNC Workflow
Submit by: CNC Programmer
Summary
Haas Corner Rounding and Chamfering
For chamfers ,C with the length of the chamfer indicated is used.
For radii a ,R with the size of the radius indicated.
The chamfering or corner rounding block may be inserted between two linear or G01 blocks. These two blocks specify a corner of the intersection of the two linear moves.

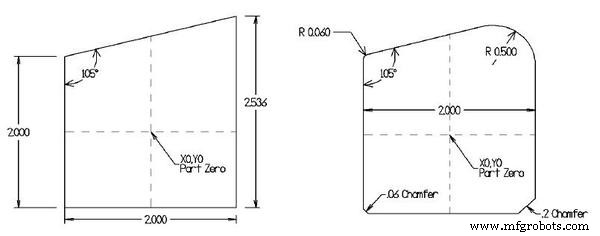

Drawing/Image
CNC Program
O00025 T2 M06 (.5 END MILL) (D=.5) G00 G90 G54 X-1.5 Y0 S5000 M03 G43 H02 Z1. M08 G01 Z-0.5 F80. G01 G41 D02 Y-0.5 F80. G03 X-1. Y0 R0.5 F50. G01 Y1. ,R0.06 G01 X1. Y1.5359 ,R0.5 G01 Y-1. ,C0.2 G01 X-1. ,C0.06 G01 Y0 G03 X-1.5 Y0.5 R0.5 G01 G40 Y0 G00 G90 Z0.1 M09 G53 Z0 M30
