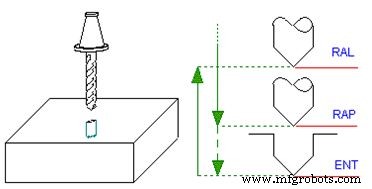

ECS G81 Standard Drilling Cycle: Precision Data Entry & Parameter Settings

A CNC programming example to illustrate the use and functionality of Siemens Sinumerik 840D CYCLE82 Drilling Counterboring cycle.Sinumerik CYCLE82 Drilling Counterboring Cycle works on Siemens Sinumerik CNC controls like,Sinumerik 840DSinumerik 810DSinumerik 808Dand similar Sinumerik cnc controls.Si

Submit by: Machinist Drawing/Image CNC Program 0 BEGIN PGM 10116 MM1 BLK FORM 0.1 Z X+0 Y+0 Z-202 BLK FORM 0.2 X+100 Y+50 Z+203 TOOL DEF 14 TOOL CALL 1 Z S10005 L M66 CYCL DEF 1.0 PECKING7 CYCL DEF 1.1 SET UP 58 CYCL DEF 1.2 PLNGNG -209 CYCL DEF 1.3 DWELL 010 CYCL DEF 1.4 F???11 L X+20 Y+20 R0 F

This is a complete Fanuc Macro which works same as Fanuc G81 Drilling Cycle.Image: directindustry.comG66 Modal CallOnce Fanuc G66 is issued to specify a modal call a macro is called after a block specifying movement along axes is executed. This continues until G67 is issued to cancel a modal call.Ma

ECS G83/r Deep Drilling with Dwell for chip breakingThe differences between this cycle and the deep drilling G83 are:At the end of every drilling step it is executed a dwell of TIM sec to broken the chip.At the end of the dwell the bit isn’t moved in rapid to the RAP quote but starts immediately nex
