Master Sinumerik CYCLE82 Drilling Counterboring Cycle: Step‑by‑Step Example Program
A CNC programming example to illustrate the use and functionality of Siemens Sinumerik 840D CYCLE82 Drilling Counterboring cycle.
Sinumerik CYCLE82 Drilling Counterboring Cycle works on Siemens Sinumerik CNC controls like,
- Sinumerik 840D
- Sinumerik 810D
- Sinumerik 808D
and similar Sinumerik cnc controls.
Sinumerik CYCLE82 Drilling Counterboring Cycle Overview
For complete understanding of Sinumerik CYCLE82 cycle read Sinumerik CYCLE82 Drilling Counterboring Cycle – CNC Mill Programming.
Sinumerik CYCLE82 Format
CYCLE82 (RTP, RFP, SDIS, DP, DPR, DTB)
RTP Retraction plane (absolute)
RFP Reference plane (absolute)
SDIS Safety distance (enter without sign)
DP Final drilling depth (absolute)
DPR Final drilling depth relative to reference plane (enter without sign)
DTB Dwell time at final depth (chip breaking)
Sinumerik CYCLE82 Drilling Counterboring Cycle CNC Program Example Code

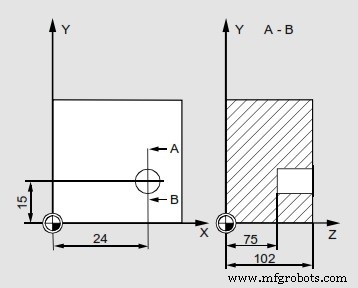

Sinumerik CYCLE82 Drilling Counterboring Cycle Example Program
N10 G00 G90 F200 S300 M03 N20 D1 T3 Z110 N21 M6 N30 X24 Y15 N40 CYCLE82(110, 102, 4, 75, , 2) N50 M30
