Sinumerik CYCLE82 Drilling & Counterboring Cycle: Advanced CNC Mill Programming
Siemens Sinumerik CYCLE82 Drilling Counterboring cycle.
Sinumerik CYCLE82 works on Sinumerik 840D, 810D, 808D and on similar Sinumerik CNC controls.
Sinumerik CYCLE82 Example Program
For a complete cnc programming example showing the use of Sinumerik CYCLE82 Drilling Counterboring Cycle read
Sinumerik CYCLE82 Drilling Counterboring Cycle Example Program
Sinumerik CYCLE82 Format
CYCLE82 (RTP, RFP, SDIS, DP, DPR, DTB)
RTP Retraction plane (absolute)
RFP Reference plane (absolute)
SDIS Safety distance (enter without sign)
DP Final drilling depth (absolute)
DPR Final drilling depth relative to reference plane (enter without sign)
DTB Dwell time at final depth (chip breaking)
Sinumerik CYCLE82 Drilling Counterboring Cycle
The tool drills at the programmed spindle speed and feedrate to the entered final drilling depth (DP or DPR). A dwell time (DTB) can be allowed to elapse when the final drilling depth has been reached.

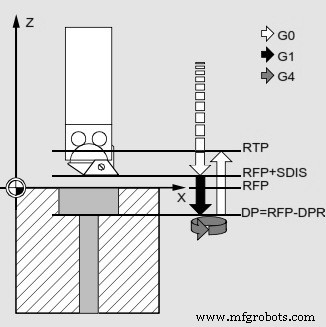

Sinumerik CYCLE82 Working
1: the drill will rapidly reach the start point (RFP + SDIS).
2: with given feed-rate will complete final drilling depth or hole depth (DP or DPR).
3: dwell for specified time (DTB) at bottom of hole.
4 : the tool will retract rapidly to Return plane (RTP)
