Sinumerik 840D CYCLE81 Drilling Centering Cycle Programming

Sinumerik Turning/Lathe Drilling Centering Cycle CYCLE81

With Sinumerik CYCLE81 the tool drills at the programmed spindle speed and feed-rate to the specified final drilling
depth.

CYCLE81 Drilling Cycle – Sinumeirk 840D Turning

CYCLE81 (RTP, RFP, SDIS, DP, DPR)

RTP  – Return plane or Retraction plane (absolute)
RFP  – Reference plane (absolute)
SDIS – Safety distance (enter without sign)
DP    – Final drilling depth (absolute)
DPR – Final drilling depth relative to reference plane (enter without sign)

Drilling depth can be given either as
Absolute depth (DP) or
Relative to reference plane depth (DPR).

Sinumerik Turning/Lathe Drilling Centering Cycle CYCLE81 Working

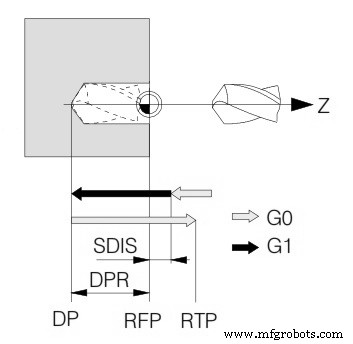

As the above figure shows
1: drill will rapidly reach the start point (RFP + SDIS).
2: with given feed-rate will complete final drilling depth (DP).
3: after completing the depth the tool will retract rapidly to Return plane (RTP)
