Siemens Sinumerik HOLES1: Efficient Row-of-Holes Drilling Cycle
Sinumerik HOLES1 Row of holes
Sinumerik HOLES1 cycle is used to produce a row of holes on a straight line.
Programming
G17 Plane active
HOLES1 (SPCA, SPCO, STA1, FDIS, DBH, NUM)

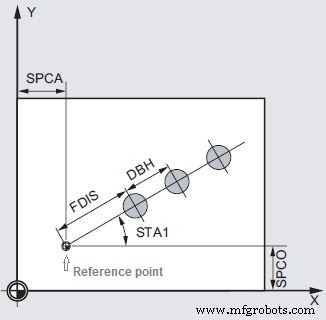

Parameters
| Parameter | Description |
|---|---|
| SPCA | Reference point in X-axis (absolute) |
| SPCO | Reference point in Y-axis (absolute) |
| STA1 | Starting angle (–180 to 180 degrees) |
| FDIS | Distance to first hole from Reference point (no sign) |
| DBH | Distance between holes (no sign) |
| NUM | Number of drill holes |

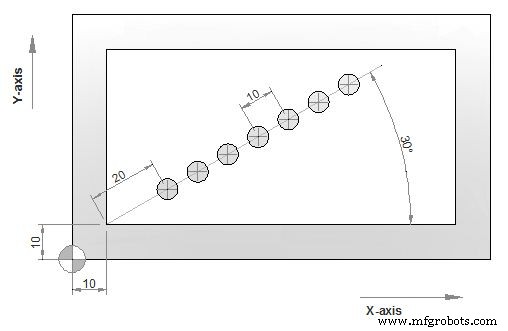

Program Example
N10 G90 F30 S500 M3 T10 D1 N20 G17 G90 X10 Y10 Z105 N30 MCALL CYCLE82(105, 102, 2, 22, 0, 1) N40 HOLES1(10, 10, 30, 20, 10, 7) N50 MCALL N60 G90 G0 X30 Z110 Y105 N100 M30
