Sinumerik CYCLE97 Threading Example – M42×2 Process Overview

Submit by: Sinumerik Programmer

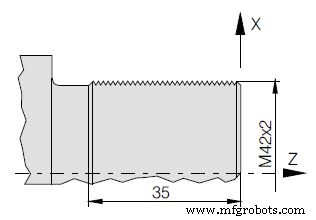

Drawing/Image

Sinumerik CYCLE97 Threading Example – M42×2 Process Overview

CNC Program

G54
G53 G0 X610 Z350
T5 D1 G95 S1000 M4
G0 X44 Z12
CYCLE97(,42,0,-35,42,42,10,3,2.76, ,30, ,5,2,3,1,1)
G0 X200 Z100
M30
