Sinumerik L97 Thread Cutting Cycle: Example Program for External Threading
Siemens Sinumerik L97 Thread Cutting Cycle can be used for, external threads, Internal threads, taper threads and transversal threads cutting.
Here is a CNC program example which shows how CNC machinists can cut external threads with Sinumerik L97 threading cycle.
For complete parameter explanation of Sinumerik L97 thread cutting cycle read Sinumerik L97 Thread Cutting Cycle

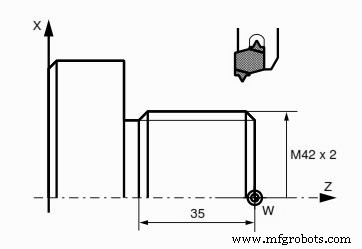

Sinumerik L97 Thread Cutting Cycle CNC Program Example
Sinumerik L97 Thread Cutting Cycle Program Example
%97
N05 G95 G0 X50 Z10 D01 T01 S1000 M04
N10 R20=2 R21=42 R22=0 R23=0
R24=-1.23 R25=0 R26=10 R27=3
R28=5 R29=30 R31=42 R32=-35
L97 P1
N15 G0 X200 Z200
N20 M30
