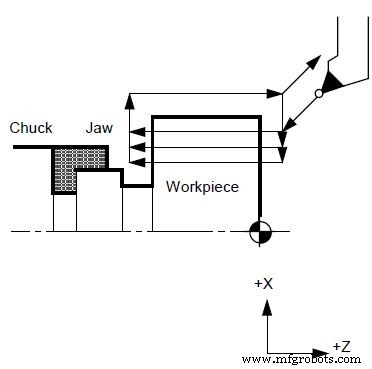

Drawing/Image

Mazak G01.1: Threading with C‑Axis Interpolation – Practical Example

CNC Program

/*MAZATROL MATRIX For INTEGREX IV Programming EIA/ISO
Mazak G01.1 command in the milling mode enables a simultaneous interpolation on the C-axis and
the X- and/or the Z-axis for straight, tapered or scrolled thread cutting of constant leads.

Programming format
G01.1 Zz/Ww Xx/Uu Ff Ss;
Where
Zz, Ww, Xx, Uu: Thread ending point addresses and coordinates (mm or in.)
Ff: Lead of long axis (axis of which moving distance is the longest) direction
Ss: Rotational speed of C-axis (rpm)
Set parameter F111 bit 3 to select the direction of C-axis rotation:
F111 bit 3 =
0 : Normal rotation of C-axis
1 : Reversed rotation of C-axis
*/

G98 G97;
G28 U0 W0;
T001T000 M06;
G50 X300. Z100.;
M200;
G00 X100. Z2. C0.;
G01.1 W-100. F2. S400;(2 mm lead and 400 rpm)
G00 U10.;
W100. C0.;
U-11.;
G01.1 W-100. F2. S400;(2 mm lead and 400 rpm)
G00 U11.;
W100. C0.;
G00 U-12.;
G01.1 W-100. F2. S400;(2 mm lead and 400 rpm)
G00 U12.;
W100.;
G28 U0 W0.;
M202;
M30;
