Mitsubishi CNC G07.1 Cylindrical Interpolation Program – Complete Example & Code

Submit by: Machinist

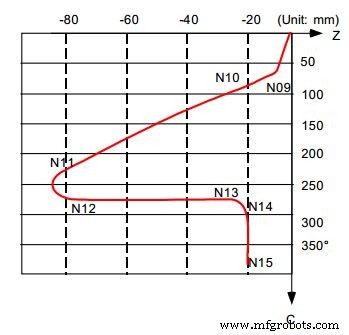

Drawing/Image

Mitsubishi CNC G07.1 Cylindrical Interpolation Program – Complete Example & Code

CNC Program

N01 G28 XZC;
N02 T0202;
N03 G97 S100 M23;
N04 G00 X50. Z0.;
N05 G94 G01 X40. F100.;
N06 G19 C0 Z0;
N07 G07.1 C20.;
N08 G41;
N09 G01 Z-10. C80. F150;
N10 Z-25. C90.;
N11 Z-80. C225;
N12 G03 Z-75. C270. R55.;
N13 G01 Z-25;
N14 G02 Z-20. C280. R80.;
N15 G01 C360.
N16 G40;
N17 G07.1 C0;
N18 G01 X50.;
N19 G0 X100. Z100.;
N20 M25;
N21 M30;
