CNC Cylindrical Interpolation Program Example: Cutting Multiple Joint Arcs
Submit by: Vikram
Summary
CNC programming example with many radii. Complete program to show how to cut multiple joint together arcs (radii).

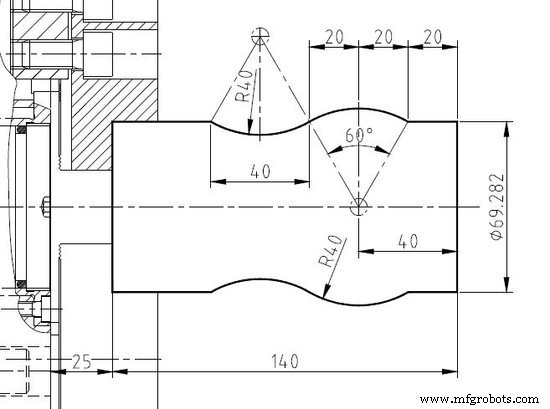

Drawing/Image
CNC Program
O0005; N10 G10 P0 Z-165; N20 T404; N30 G50 S2000; N40 G96 S200 G99 F.2 M4 M8 M200; N50 G0 X69.282 Z2; N60 G1 Z-20; N70 G3 X69.282 Z-60 R40; N80 G2 X69.282 Z-100 R40; N90 G1 Z-105; N100 G0 X150; N110 Z10; N120 M30;
