Example CNC Program: Selca Profile – Step-by-Step Guide
Submit by: CNC Programmer

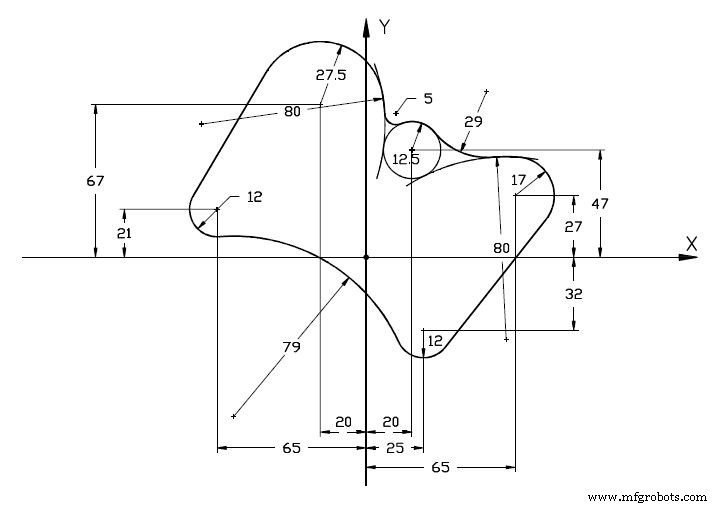

Drawing/Image
CNC Program
N1 [PROFILE 9 N2 $1M0X-116.I119.Y-45.3J105. N3 G17 N4 O1 N5 T1 N6 F1000S1200M3 N7 Z100R N8 X0Y0R N9 Z2R N10 Z-10 N11 G49I2.5 N12 G42K2 N13 E1=G20X25Y-32I-12 N14 E2=G20X-65Y21I-12 N15 E3=E1,G21I79,E2 N16 E3 N17 E2 N18 E4=G20X-20Y67I-27.5 N19 G11E4 N20 E4 N21 E5=G20X20Y47I-12.5 N22 E6=E4,G21I-80,-E5 N23 E6 N24 G21I5 N25 E5 N26 G21I29 N27 E7=G20X65Y27I-17 N28 E8=-E5,G21I-80,E7 N29 E8 N30 E7 N31 G11E1 N32 E1 N33 E3 N34 G40X0Y0K2 N35 Z100R N36 M30
SELCA CNC Programming Sample – Step‑by‑Step Code Overview
Complete Selca CNC Program Example – Step‑by‑Step Guide
