Selca CNC Program Example: G21 Chamfer Process Explained
Submit by: CNC Programmer

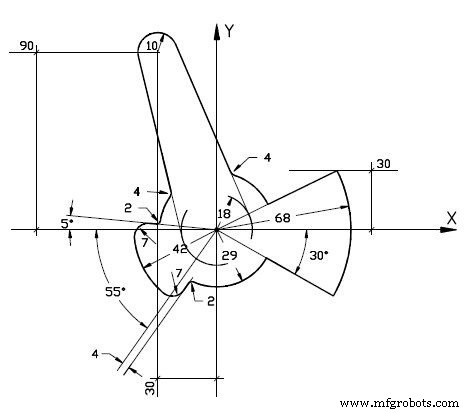

Drawing/Image
CNC Program
N1 [PROFILE N2 $1M0X-119.I124.Y-44.2J111. N3 G17 N4 O1 N5 T1 N6 F1000S1200M3 N7 G49I5 N8 Z100R N9 X0Y-40R N10 Z2R N11 Z-10 N12 G42K2 N13 G20X0Y0I29 N14 G13X0Y0J-30K2 N15 E1=G20X0Y0I68 N16 E1K2 N17 E2=G13Y30X0J180,E1 N18 G10E2 N19 G11X0Y0 N20 G20X0Y0I29 N21 G21I-4 N22 G10X0Y0I18 N23 G11X-30Y90I10 N24 G20 N25 G11X0Y0I18 N26 G21 N27 G20X0Y0I29 N28 G21I-2 N29 G13X0Y0J175 N30 G21I7 N31 G20X0Y0I42 N32 G21 N33 G13X0Y0I4J55 N34 G21I-2 N35 G20X0Y0I29 N36 G40X0Y-40K2 N37 Z100R N38 M30
