Comprehensive Osai CNC GTL Programming Guide: Step-by-Step Example

Osai 10 Series allows the programmers to make cnc programs using standard programming language (G1-G2-G3) or GTL, a high level programming language (GTL).

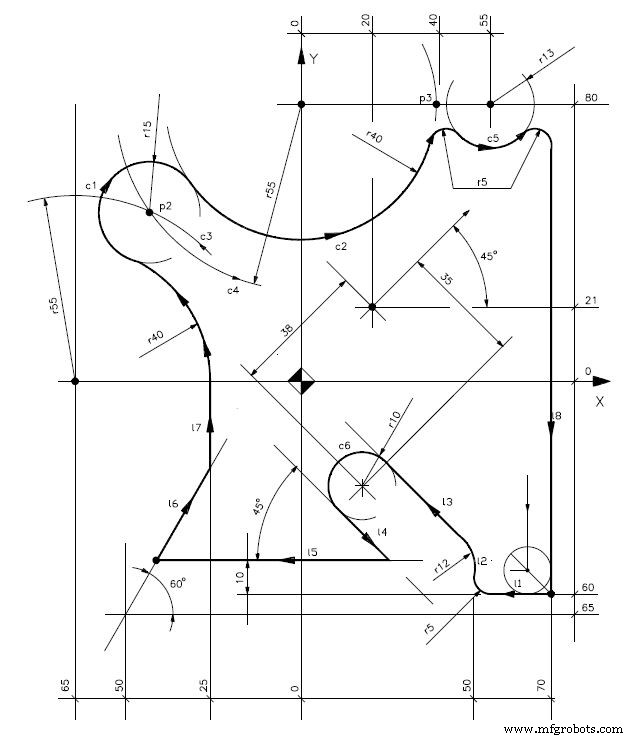

Here is a complete Osai GTL programming example.

Osai CNC GTL Program Example

N1 (DIS,"EXAMPLE 3")
N2 S...F...T1.1M6 M...
N3 o1=X20 Y21 a45
N4 l1=X0 Y-60,a180
N5 l2=X50 Y0,a90
N6 c6=o1 I-38 J-35 r10
N7 l3=c6,a135
N8 l4=c6,a-45
N9 l5=X0 Y-50,a180
N10 l6=X-50 Y-65,a60
N11 l7=X-25 Y0,a90
N12 c3=I-65 J0 r55
N13 c4=I0 J80 r55
N14 p2=c3,c4
N15 c1=p2,r-15
N16 p3=X40 Y80
N17 c2=c1,p3,r40
N18 c5=I55 J80 r13
N19 l8=X70 Y0,a-90
N20 G21 G42 l8
N21 Z-10
N22 l1
N23 r-5
N24 l2
N25 r12
N26 l3
N27 c6
N28 l4
N29 l5
N30 l6
N31 l7
N32 r40
N33 c1
N34 c2
N35 r-5
N36 c5
N37 r-5
N38 l8
N39 G20 G40 l1
N40 G Z20
N41 X... Y... M30

Osai GTL Geometric Programming Demo: Advanced High-Level Example Comprehensive Osai 10 Series GTL Programming Example for CNC Machining
