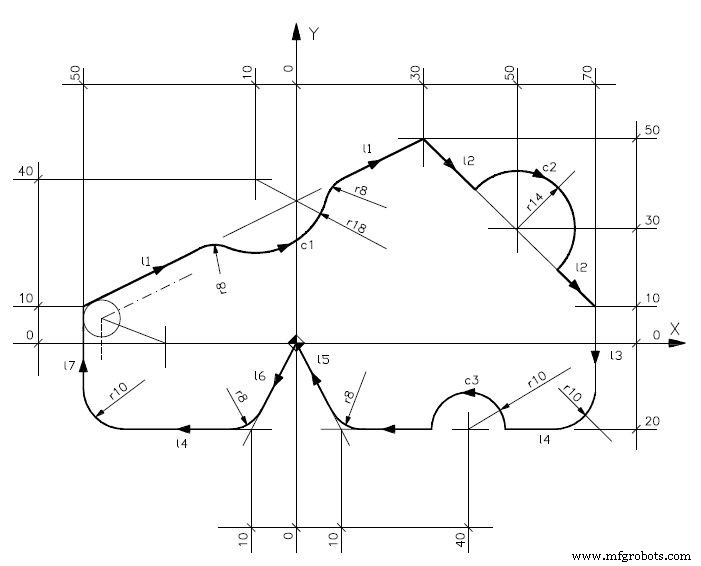

Comprehensive Osai 10 Series GTL Programming Example for CNC Machining
Osai 10 Series Programming example using Osai GTL (high level programming language).
Osai GTL Programming Example
N1 (DIS,"EXAMPLE GTL") N2 l1=X-50Y10,X30Y50 N3 l2=X30Y50,X70Y10 N4 l3=X70Y0,a-90 N5 l4=X=Y-20,a180 N6 l5=X10Y-20,X0Y0 N7 l6=X0Y0,X-10Y-20 N8 l7=X-50Y0,a90 N9 c1=I-10J40r18 N10 c2=I50J30r-14 N11 c3=I40J-20r10 N12 S...M...T3.3M6M.... N13 G0X-30Y0 N14 Z-10 N15 G21G42l7 N16 l1 N17 r-8 N18 c1 N19 r-8 N20 l1 N21 l2 N22 c2s2 N23 l2 N24 l3 N25 r-10 N26 l4 N27 c3s2 N28 l4 N29 r-8 N30 l5 N31 l6 N32 r-8 N33 l4 N34 r -10 N35 l7 N36 G20G40l1 N37 G0Z20
