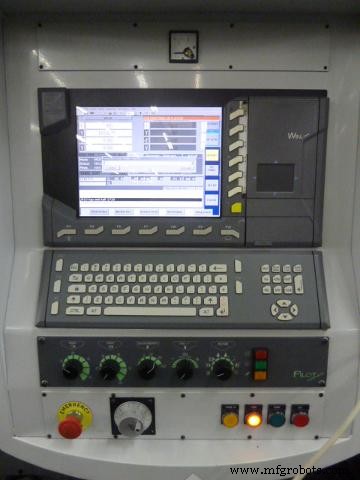

Osai 10 Series CNC G Codes for Milling & Grinding – Complete Reference
Osai 10 Series CNC G Codes for Mill & Grinding complete list.
Osai 10 Series CNC G Codes – Mill & Grinding
| G Code | Description |
|---|---|
| G00 | Rapid axes positioning |
| G01 | Linear interpolation |
| G02 | Circular interpolation CW |
| G03 | Circular interpolation CCW |
| G04 | Dwell at end of block |
| G09 | Deceleration at end of block |
| G16 | Circular interpolation and cutter diameter compensation on a defined plane |
| G17 | Circular interpolation and cutter diameter compensation on 1st-2nd axes plane |
| G18 | Circular interpolation and cutter diameter compensation on 3rd-1st axes plane |
| G19 | Circular interpolation and cutter diameter compensation on 2nd-3rd axes plane |
| G20 | Closes GTL profile |
| G21 | Opens GTL profile |
| G27 | Continuous sequence operation with automatic speed reduction on corners |
| G28 | Continuous sequence operation without speed reduction on corners |
| G29 | Point-to-point operation |
| G33 | Constant or variable pitch thread |
| G40 | Cutter diameter compensation disable |
| G41 | Cutter diameter compensation-tool left |
| G42 | Cutter diameter compensation-tool right |
| G60 | Closes the HSM profile |
| G61 | Opens the HSM profile |
| G62 | Splits the HSM profile in two with continuity |
| G63 | Splits the HSM profile in tw with link |
| G66 | Splits the HSM profile in two with edge |
| G67 | Splits the HSM profile in two with reduced speed on edge |
| G70 | Programming in inches |
| G71 | Programming in millimetres |
| G72 | Point probing with probe tip radius compensation |
| G73 | Hole probing with probe tip radius compensation |
| G74 | Probing for theoretical deviation from a point without probe tip radius compensation |
| G79 | Programming referred to axis home switch |
| G80 | Disable canned cycles |
| G81 | Drilling cycle |
| G82 | Spot-facing cycle |
| G83 | Deep hole drilling cycle |
| G84 | Tapping cycle |
| G85 | Reaming cycle |
| G86 | Boring cycle |
| G89 | Boring cycle with dwell |
| G90 | Absolute programming |
| G91 | Incremental programming |
| G92 | Axis presetting without mirror |
| G93 | Inverse time (V/D) feedrate programming mode |
| G94 | Feedrate programming in ipm or mmpm |
| G95 | Feedrate programming in ipr or mmpr |
| G96 | Constant surface speed (feet per minute or metres per minute) |
| G97 | Spindle speed programming in rpm |
| G98 | Axis presetting with mirror |
| G99 | Delete G92 |
