CNC Lathe Arc Programming Guide – G02 & G03 Combined Example

CNC program example to show how two combined arc can be programmed with G02 G03 for a cnc lathe.

First arc is programmed using G02 R, but the second arc is programmed using G03 I K

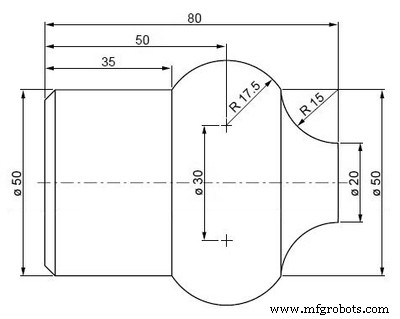

CNC Lathe Arc Programming Guide – G02 & G03 Combined Example

G02 G03 Programming Example

G02 G03 Programming Example

N50 G00 X20 Z85
N60 G96 S200
N70 G01 Z80
N80 G02 X50 Z65 R15
N90 G03 X50 Z35 I-10 K-15
N100 G00 X80
N110 G97 S900 M05
N120 M30
