SELCA CNC Programming Sample – Step‑by‑Step Code Overview
Submit by: CNC Programmer

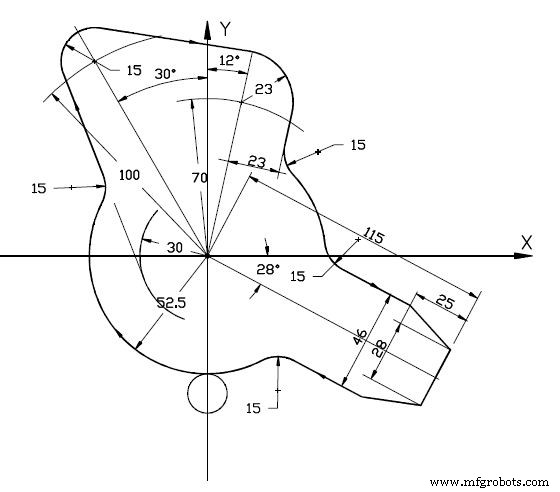

Drawing/Image
CNC Program
N1 [PROFILE 11 N2 $1M0X-158.I155.Y-84.6J115. N3 G17 N4 O1 N5 T1 N6 F1000S1200M3 N7 Z100R N8 X0Y-70R N9 Z2R N10 Z-10 N11 G49I5 N12 G41K2 N13 G20X0Y0I-52.5 N14 G21I15 N15 G10X0Y0I-30 N16 E1=G20X0Y0I100,G13X0Y0J120K2 N17 G11E1I-15 N18 G20 N19 E2=G20X0Y0I70,G13X0Y0J78K2 N20 G11E2I-23 N21 G20 N22 G13J-102 N23 G21I15 N24 G20X0Y0I-52.5 N25 G21 N26 E3=G13X0Y0I-23J-28 N27 E3 N28 E4=G13X0Y0I-115J-118 N29 E5=E4Q-25 N30 E6=E3,E5 N31 G10E6 N32 E7=G13X0Y0I-14J-28,E4 N33 G11E7 N34 E4 N35 E8=G13X0Y0I14J-28,E4 N36 G10E8 N37 E9=G13X0Y0I-23J152 N38 E10=E5,E9 N39 G11E10 N40 E9 N41 G21 N42 G20X0Y0I-52.5 N43 G40X0Y-70K2 N44 Z100R N45 M30
