Comprehensive CNC Programming Example for Selca Machines
Submit by: CNC Programmer

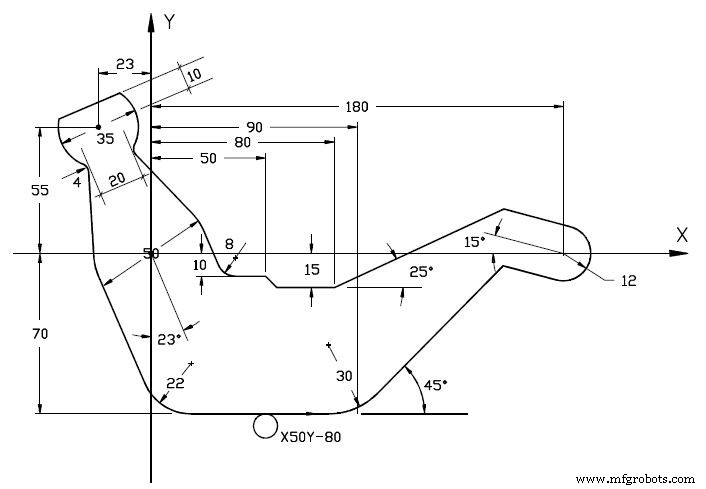

Drawing/Image
CNC Program
N1 [PROFILE 5 N2 $1M0X-54.8I205.Y-83.4J82.8 N3 G17 N4 O1 N5 T1 N6 F1000S1200M3 N7 G49I5 N8 Z100R N9 X50Y-80R N10 Z2R N11 Z-10 N12 G42K2 N13 G13Y-70J0 N14 G21I30 N15 G13X90Y-70J45 N16 G13X180Y0I12J-15 N17 G20 N18 G13J165 N19 G13X80Y-15J205 N20 G13J180 N21 G13X50Y-10J135 N22 G13J180 N23 G21I-8 N24 G13X0Y0I25J113 N25 G20 N26 E1=G20X-23Y55I17.5 N27 E2=G13X0Y0I10J113,E1 N28 G11E2 N29 G21I-4 N30 E1 N31 G13X-23Y55I10J203 N32 E1K2 N33 G21 N34 E3=G13X0Y0I-10J113,E1 N35 G10E3 N36 G11X0Y0I25 N37 G20 N38 G13J-67 N39 G21I22 N40 G13Y-70J0 N41 G40X50Y-80K2 N42 Z100R N43 M30
