CNC Milling Machine Programming: Beginner-Friendly Example Guide

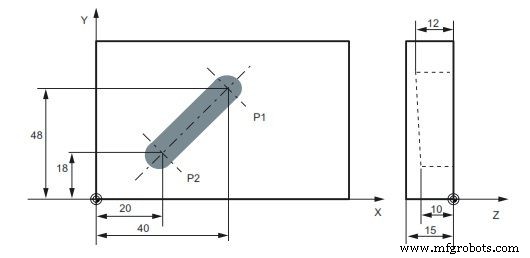

CNC Milling Machine Programming Example for Beginners

N05 G0 G90 X40 Y48 Z2 S500 M3
N10 G1 Z-12 F100
N15 X20 Y18 Z-10
N20 G0 Z100
N25 X-20 Y80
N30 M2

N05 The tool traverses in rapid traverse on P1, three axes concurrently, spindle speed = 500 rpm, clockwise
N10 Infeed on Z-12, feed 100 mm/min
N15 Tool travels on a straight line in space on P2
N20 Retraction in rapid traverse
N30 End of program
