Heidenhain CNC Milling Program Tutorial for Beginners
Submit by: Brian

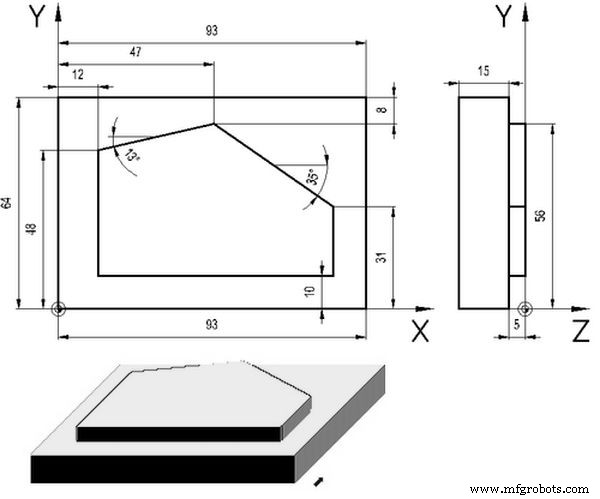

Drawing/Image
CNC Program
0 BEGIN PGM 1 MM 1 BLK FORM 0.1 Z X+0 Y+0 Z-15 2 BLK FORM 0.2 X+93 Y+64 Z+0 3 TOOL DEF 1 L+0 R+17 4 TOOL CALL 1 Z S 2400 5 L X-20 Y+10 Z+2 R0 FMAX M03 6 L Z-5 RR F40 M 7 L X+83 R F80 M 8 L Y+31 R F M 9 L X+47 Y+56 R F M 10 L X+12 Y+48 R F M 11 L Y-20 R F M 12 L Z+2 R F M 13 L X-40 Y+10 Z+20 R0 FMAX M 14 STOP M02 15 END PGM 1
