Mastering Pocket Milling with Heidenhain CNC Programming
Submit by: Brian

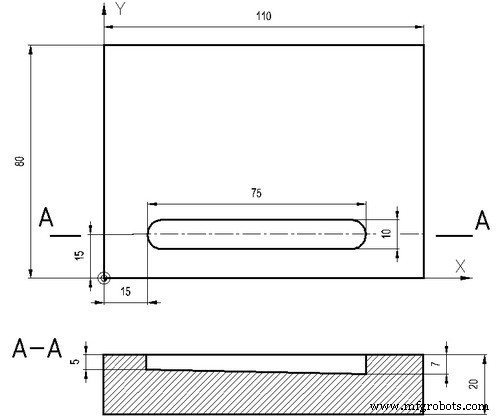

Drawing/Image
CNC Program
0 BEGIN PGM 1 MM 1 BLK FORM 0.1 Z X+0 Y+0 Z-20 2 BLK FORM 0.2 X+110 Y+80 Z+0 3 TOOL DEF 1 L+0 R+5 4 TOOL CALL 1 Z S 2200 5 L X+20 Y+15 Z+2 R0 FMAX M03 6 L Z-5 R F40 M 7 L X+85 Z-7 R F M 8 L Z+20 R F M 9 L X-40 Y+60 R F M02 10 END PGM 1
