G02 G03 Circular interpolation CNC mill example program.

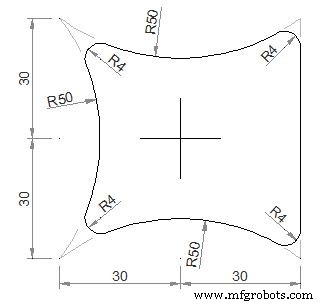

G02 G03 Example CNC Mill
CNC Part Program

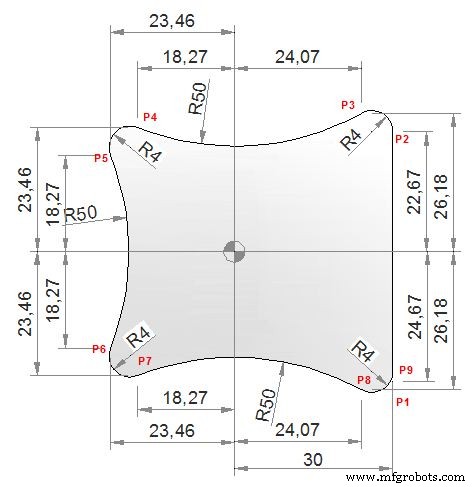

G0 X30 Y-30 (P1) G1 Y22.67 (P2) G3 X24.07 Y26.18 R4 (P3) G2 X-18.27 Y23.46 R50 (P4) G3 X-23.46 Y18.27 R4 (P5) G2 X-23.46 Y-18.27 R50 (P6) G3 X-18.27 Y-23.46 R4 (P7) G2 X24.07 Y-26.18 R50 (P8) G3 X30 Y-24.67 R4 (P9) G1 X33
G M S T Codes Explanation
| Code | Description |
|---|---|
| G0 | Rapid traverse |
| G1 | Linear interpolation |
| G2 | Circular interpolation CW |
| G3 | Circular interpolation CCW |
| M30 | End of program (Reset) |
