Master CNC Arc Programming: G02 & G03 Joint Arc Example
CNC arc programming example this cnc program shows how two arcs G03 G02 can be joint together.

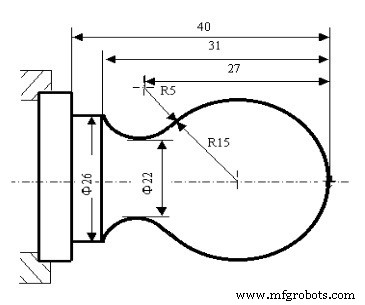

CNC Arc Programming G02 G03 Example
CNC Arc Programming G02 G03 Example
O0001 N001 G0 X40 Z5； （Rapid position） N002 M03 S200； （Start spindle） N003 G01 X0 Z0 F900； (Approach workpiece) N005 G03 U24 W-24 R15； （Cut R15 arc） N006 G02 X26 Z-31 R5； （Cut R5 arc） N007 G01 Z-40； (Cutф26) N008 X40 Z5； (Return to starting point) N009 M30； （End of program）
