CNC Lathe Programming: Arc Radius Example Using G02 & G03 Codes
Submit by: Brian
Summary
A basic and easy to understand cnc lathe program example to machine Arc Radius with G02 G03 G-Codes

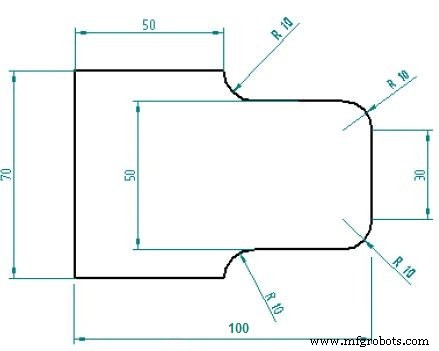

Drawing/Image
CNC Program
N05 G94 M06 T0101 N10 G00 X0 Z0 M04 S360 N15 G01 X30 F30 N20 G03 X50 Z-10 R10 N25 G01 Z-40 N30 G02 X70 Z-50 R10 N35 G01 Z-100 N40 G00 X100 N45 G00 Z10 N50 M05 N55 M30
